Keystone Customs announces Speaker Enclosures!
« on: December 24, 2021, 11:40:02 AM »
+2
Keystone Customs announces four new speaker enclosures for DCC READY ONLY Kato EMD E and F units and Alco PA and Rapido FL9 units.

The huge enclosures mount atop the diaphragm frame on an 11mm X 15mm X 3.5mmp high speaker (linked in the product pages). The idea comes from @Scott Lupia so I cannot take credit. Three styles are sold in three packs, one style is a two pack and all are printed in FUD for a great price point value.

The enclosures include a rear LED wire channel on the top that is wide enough to glue in an 0402 LED to light a rear backup light.

Instructions and chassis milling dimensions will follow at a later date.

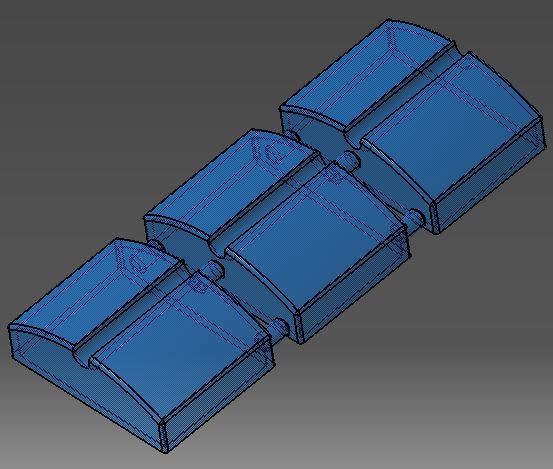

N Scale Kato EMD F Unit Short Speaker Box 3PK here

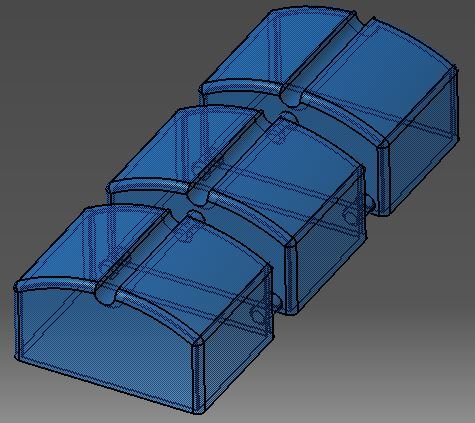

N Scale Kato EMD E Unit Speaker Box 3PK here

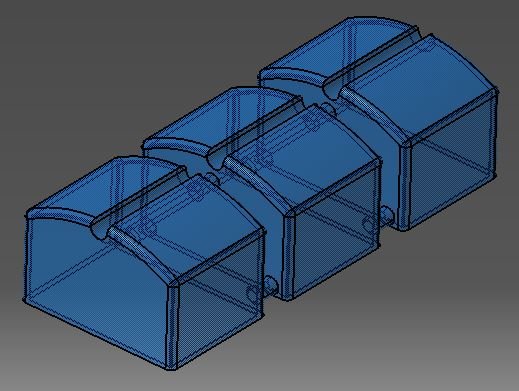

N Scale Kato PA and Rapido FL9 Speaker Box 3PK here

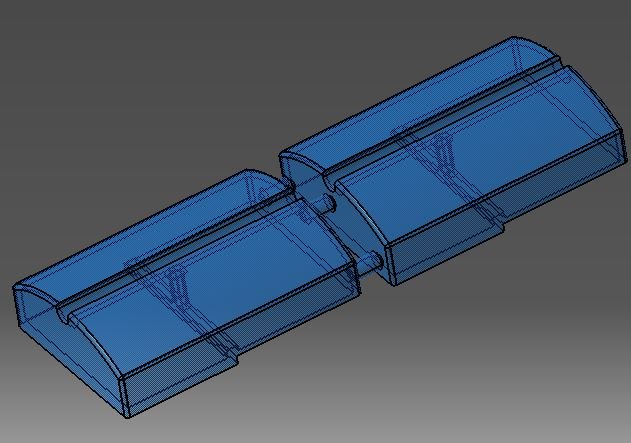

N Scale Kato EMD F Unit Speaker Box 2PK here



Here is a sample image of the concept using a modified enclosure:


« Last Edit: December 24, 2021, 12:35:40 PM by Lemosteam »

peteski

  • Crew
  • *
  • Posts: 28419
  • Gender: Male
  • Honorary Resident Curmudgeon
  • Respect: +3254
    • Coming (not so) soon...
Re: Keystone Customs announces Speaker Enclosures!
« Reply #1 on: December 24, 2021, 11:50:28 AM »
0
Nice!  Which sound decoder is being used in that Kato unit? Soundtraxx?
« Last Edit: December 24, 2021, 11:55:27 AM by peteski »
. . . 42 . . .

Lemosteam

  • Crew
  • *
  • Posts: 5068
  • Gender: Male
  • PRR, The Standard Railroad of my World
  • Respect: +2022
    • Designer at Keystone Details
Re: Keystone Customs announces Speaker Enclosures!
« Reply #2 on: December 24, 2021, 12:13:54 PM »
0
Nice!  Which sound decoder is being used in that Kato unit? Soundtraxx?

Not sure, Scott’s photo.

peteski

  • Crew
  • *
  • Posts: 28419
  • Gender: Male
  • Honorary Resident Curmudgeon
  • Respect: +3254
    • Coming (not so) soon...
Re: Keystone Customs announces Speaker Enclosures!
« Reply #3 on: December 24, 2021, 12:33:57 PM »
0
Not sure, Scott’s photo.

Ok, thanks.  Now that I think about that, Soundtraxx is the only one making that style of sound decoder.  I'm still hoping for ESU or ZIMO to come out with that size drop-in decoder for all the Kato locos using that light board.

BTW, using standard nomenclature, the SMD LED size is 0604 not 0406
. . . 42 . . .

Scott Lupia

  • Crew
  • *
  • Posts: 347
  • Respect: +182
Re: Keystone Customs announces Speaker Enclosures!
« Reply #4 on: December 24, 2021, 06:38:53 PM »
0
Nice!  Which sound decoder is being used in that Kato unit? Soundtraxx?

In the photo an ESU 58828 clipped into a WD adaptor board via the NEX18 plug is being used.  I also used the Tsunami KN1 decoder.  I prefer the ESU decoders so I can alter the sound files though.

Scott Lupia
"All I wanted was a Pepsi"

reinhardtjh

  • Crew
  • *
  • Posts: 2708
  • Respect: +269
Re: Keystone Customs announces Speaker Enclosures!
« Reply #5 on: December 24, 2021, 11:56:12 PM »
0
Nice product.

Just a heads up, this page has one title (and file name) but the wrong text.

  http://www.keystonedetails.com/keystone-customs/2021/12/23/n-scale-kato-emd-f-unit-short-speaker-box-3pk
« Last Edit: December 25, 2021, 12:13:18 AM by reinhardtjh »
John H. Reinhardt
PRRT&HS #8909
C&O HS #11530
N-Trak #7566

Lemosteam

  • Crew
  • *
  • Posts: 5068
  • Gender: Male
  • PRR, The Standard Railroad of my World
  • Respect: +2022
    • Designer at Keystone Details
Re: Keystone Customs announces Speaker Enclosures!
« Reply #6 on: December 25, 2021, 09:54:30 AM »
0
Thanks @reinhardtjh

Kentuckian

  • Crew
  • *
  • Posts: 806
  • Gender: Male
  • "This all started with Romans 10:9!" -Apologetix
  • Respect: +378
Re: Keystone Customs announces Speaker Enclosures!
« Reply #7 on: December 25, 2021, 11:42:17 AM »
0
Procrastination pays off!
Modeling the C&O in Kentucky.

“Nature does not know extinction; all it knows is transformation. ... Everything science has taught me-and continues to teach me-strengthens my belief in the continuity of our spiritual existence after death. Nothing disappears without a trace.” Wernher von Braun

peteski

  • Crew
  • *
  • Posts: 28419
  • Gender: Male
  • Honorary Resident Curmudgeon
  • Respect: +3254
    • Coming (not so) soon...
Re: Keystone Customs announces Speaker Enclosures!
« Reply #8 on: December 26, 2021, 03:37:04 AM »
0
In the photo an ESU 58828 clipped into a WD adaptor board via the NEX18 plug is being used.  I also used the Tsunami KN1 decoder.  I prefer the ESU decoders so I can alter the sound files though.

Scott Lupia

Thanks Scott!  I forgot about those adapter boards.  :facepalm:  I also prefer ESU to Soundtraxx Tsunamis.
