Author Topic: Family Lines gray paint  (Read 1404 times)

0 Members and 1 Guest are viewing this topic.

TFigura

  • Posts: 2
  • Respect: 0
Family Lines gray paint
« on: January 12, 2013, 06:26:16 PM »
0
Can anyone advise what the best color match is for Family Lines gray?  Pollyscale prefered...but anything will work.

Thanks

Tom Figura
Indianapolis, IN

ljudice

  • Crew
  • *
  • Posts: 2992
  • Gender: Male
  • Respect: +129
    • NS/CR Camp Car Models
Re: Family Lines gray paint
« Reply #1 on: January 12, 2013, 06:43:13 PM »
0
Railwire member Ron Bearden is the expert on this - however I would just say that if you're modeling the later CSX era that these guys faded into a much lighter color as time went on....


jmlaboda

  • Crew
  • *
  • Posts: 2181
  • Gender: Male
  • Respect: +162
    • Passenger Car Photo Index
Re: Family Lines gray paint
« Reply #2 on: January 12, 2013, 08:04:14 PM »
0
From the ACL-SAL-SCL Modeler List at Yahoo! Groups...

"Poly scale French Dark and Light Blue Gray mixed half and half for an in service unit. I made it up and it looks spot on!! You can vary the mixture to get a fresh to worn scheme. The stock numbers are F505236 for dark and F 505242 for light."

TFigura

  • Posts: 2
  • Respect: 0
Re: Family Lines gray paint
« Reply #3 on: January 12, 2013, 08:52:47 PM »
0
Thanks!  I'll give it a try.

Tom

u18b

  • Crew
  • *
  • Posts: 2540
  • Respect: +477
    • My website
Re: Family Lines gray paint
« Reply #4 on: January 12, 2013, 11:05:06 PM »
0
It totally depends on what you are modeling.

French Gray (like PRR Brunswick Green) fades terribly- almost to a different color.

French Gray has a slightly brownish tint to it when new.  See Atlas' B23-7.  That was pretty close.  They have also done the U25B in it.

But by the time of CSX, that color had faded.  Since I model CSX, I use plain old refer gray (floquil) when I paint Family Lines or even SBD System.

By the days of CSX (July 1986) only two locomotives IIRC would have been in fairly new SBD System paint.  And that would be the B36-7s (which have not been made by Atlas (YET!) and the SD50s which Atlas has done.  So, in 1986, you could model those as CSX French Gray.

But if you model about 1988 or later then I would go with a gray that has no hint of brown.

A photo may not capture what your eye can see as well... but here are a few shots.  My guess is that the shots may not show much of a difference.  But here goes.

Stock Atlas locos with the darker paint.

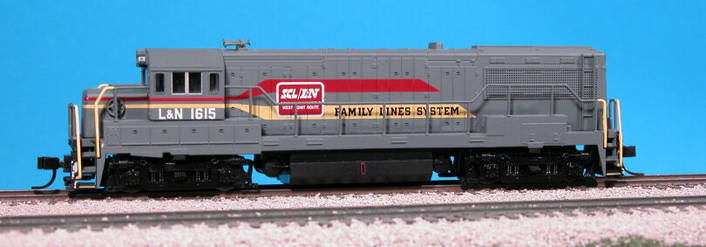

U25B


MP15 Stock- but patched for CSX- renumbered.

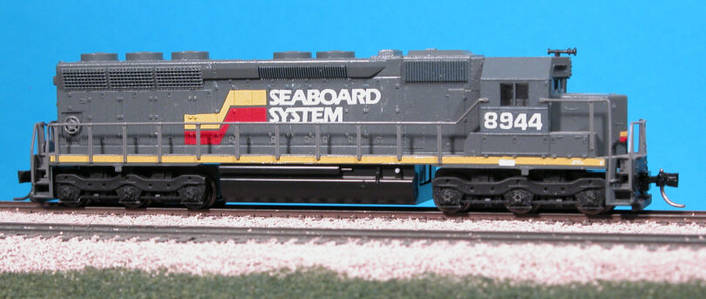

custom painted SD45 in darker (fresher) paint.  AccuPaint SBD System, I think.  This model could represent a loco in SBD System days (1984-1986), or a CSX loco, painted in about late 1985 and photo taken in 1986.  (SBD system stopped painting units by early 1986 in anticipation of the up-coming CSX merger.)

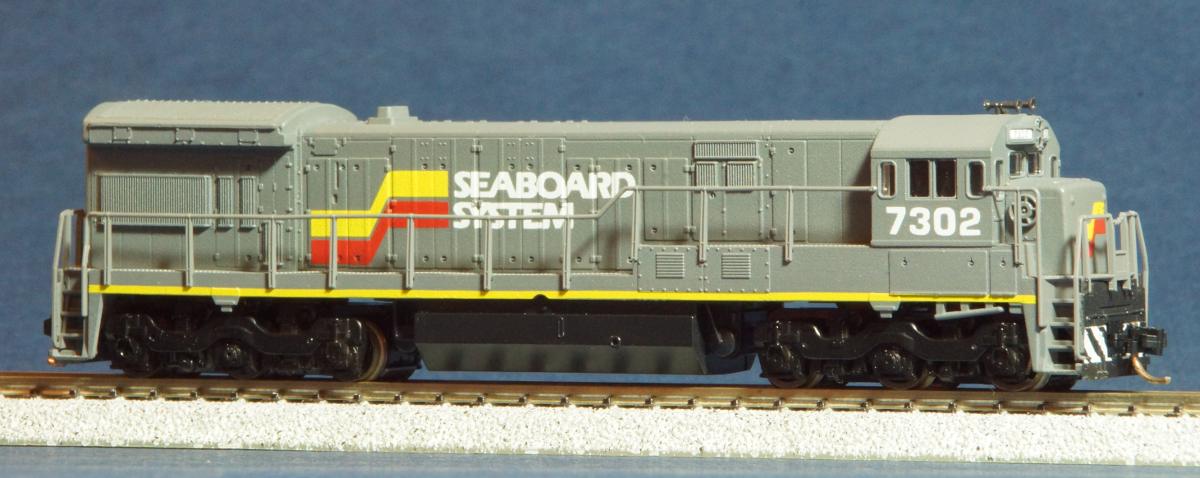

Stock Kato U30C.  Actually looks good for CSX, a bit light for SBD Sys.

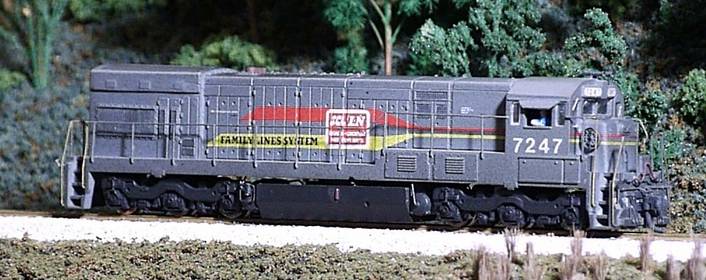

Kitbashed U30C, Floquil reefer gray.  Weathered darker.  Photo skewed blue slightly.

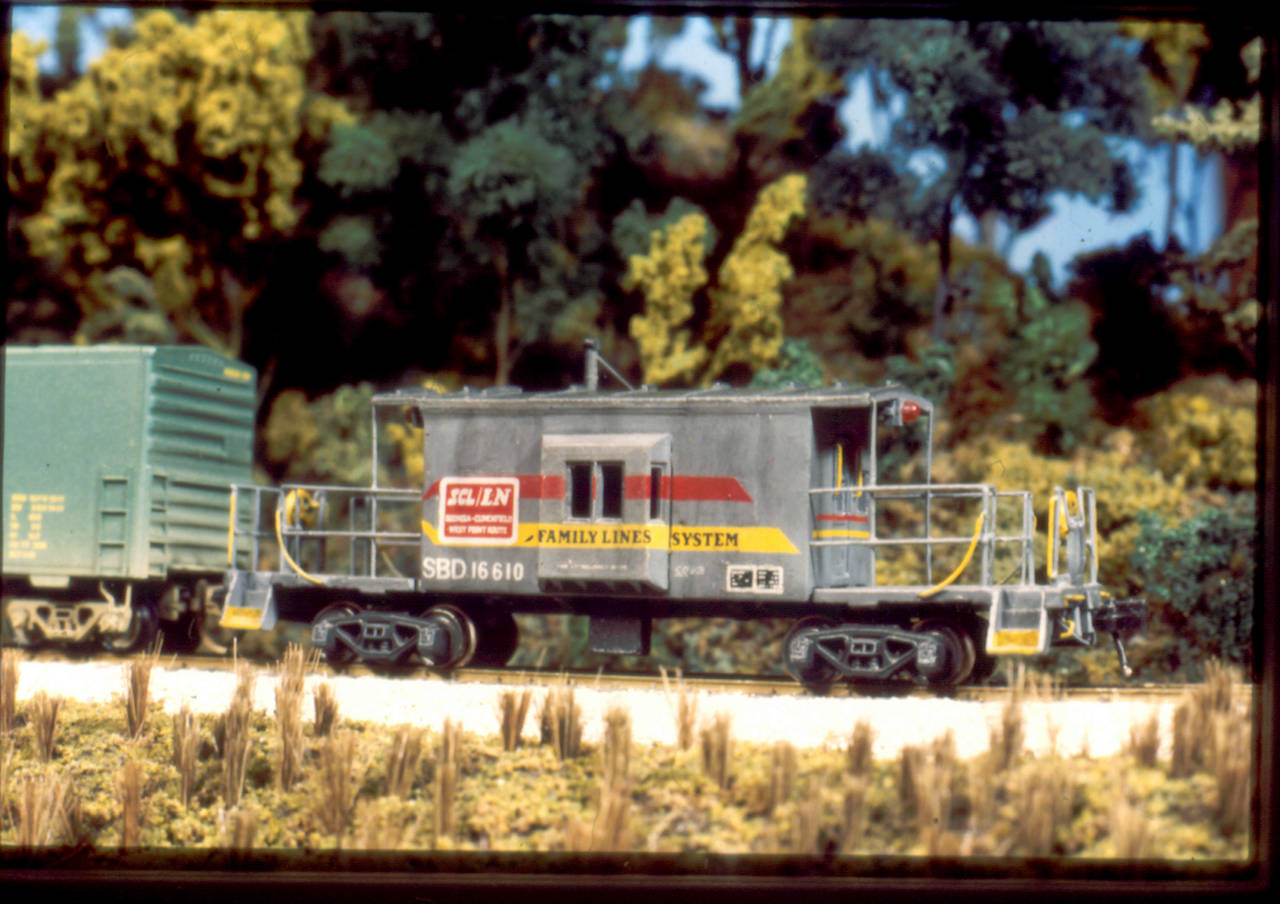

Kitbashed shorty cab.  Floquil Reefer gray.  Lightly weathered.

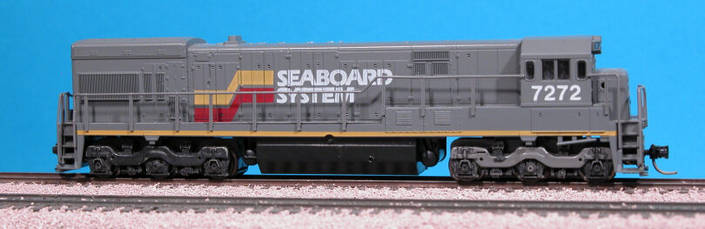

Kitbashed U36C.  I think Poly-S waterbased reefer gray.  Notice it is a bit lighter.  Unweathered.

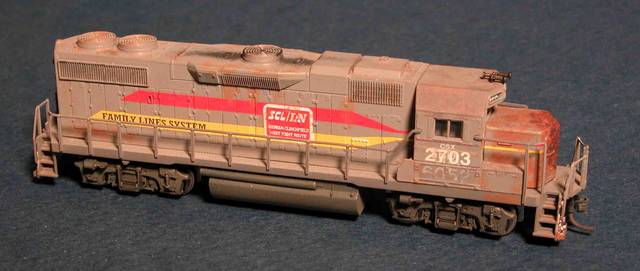

Kitbashed late GP38-2.   I think Poly-S waterbased reefer gray.  Weathered lighter.  This is supposed to be OLD.  Photo skewed slightly red- sorry.



Timeline:
Family Lines paint introiduced some time around 1979 (I think).  At least early 80s.
SBD SYStem as a railroad was 1984-1986.
CSX July 1, 1986 - present (though some time around 1993-95, yellow ends started being applied to everything if it did not have yellow already.

So as I began.... it depends on what you want to model timewise.

« Last Edit: January 12, 2013, 11:16:47 PM by u18b »
Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

Hyperion

  • Crew
  • *
  • Posts: 975
  • Gender: Male
  • Respect: +7
Re: Family Lines gray paint
« Reply #5 on: January 12, 2013, 11:16:25 PM »
0
So, it's kinda like painting a KCS unit.

"It depends".

The good thing is with grays, is that unlike bright and vibrant colors, the eye doesn't perceive differences in what it 'expects' to see as much.  Change the hue of Red on a Warbonnet and it's instantly noticeable as being "wrong".  But grays, I think due to a massive difference in how they're perceived in various lighting, almost always look right unless they're just grossly wrong.  "Scale Effect" seems to come into effect more on more 'drab' colors as well, allowing even more concession in color tone.
-Mark

u18b

  • Crew
  • *
  • Posts: 2540
  • Respect: +477
    • My website
Re: Family Lines gray paint
« Reply #6 on: January 12, 2013, 11:21:19 PM »
0
I think you are exactly right.  Early Atlas/china attempts at Chessie orange (vermillion) were too red (as in the first Atlas GP40s in Chessie) and it was noticeable.  But Atlas improved with time.

Likewise, I saw exactly what GN/BN people were complaining about with the recent SD45s.  reddish/orange color was off.

So yes, some colors are probably more susceptible to be noticed than others.

Gray is a pretty neutral color- ( though I wish Atlas would lighten their CSX gray just a bit- there I go meddling again).
« Last Edit: January 12, 2013, 11:25:23 PM by u18b »
Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

u18b

  • Crew
  • *
  • Posts: 2540
  • Respect: +477
    • My website
Re: Family Lines gray paint
« Reply #7 on: January 12, 2013, 11:38:12 PM »
0
Here is your CSX color guide.  First four groups.
http://www.trainweb.org/csxphotos/schemes_sbd.htm


Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.
