Author Topic: Solid Gold  (Read 1970 times)

0 Members and 1 Guest are viewing this topic.

Ryan87

  • Crew
  • *
  • Posts: 799
  • Gender: Male
  • Stay thirsty my friend...
  • Respect: 0
Solid Gold
« on: October 10, 2007, 07:28:17 PM »
0
Here's my latest project.

I tried several new thing on this one, Instead of using a wash to fade the paint I used a very thin coat of Floquil mud with an airbrush.  I used Rich's technique (using chalk applied downward with a small brush) for some of the rust streaks (acrylic oils for the rest :() , and took Toms advise to use the paint its self to create texture (thanks Tom).

The trucks/Couplers are temporary (the model will have MT 903's)

Once again any Comments/Suggestions wanted.




Swimming in a sea of Action Red...

tom mann

  • Administrator
  • Crew
  • *****
  • Posts: 10658
  • Representing The Railwire on The Railwire
  • Respect: +705
    • http://www.chicagoswitching.com
Re: Solid Gold
« Reply #1 on: October 10, 2007, 07:52:44 PM »
0
Very nice!  Maybe try a wash around the door, too?

Yes, in N and Z, the paint is enough for most texturing.

3rdrail

  • Guest
Re: Solid Gold
« Reply #2 on: October 10, 2007, 07:56:06 PM »
0
Looks very, very, good. Only problem I notice are the sill steps and the steps by the door. Thse look freshly painted without any dirt or wear from train crews using them.

ednadolski

  • Crew
  • *
  • Posts: 2993
  • Respect: +351
Re: Solid Gold
« Reply #3 on: October 11, 2007, 08:27:43 AM »
0
I really like the roof!  :)

Ed

amato1969

  • Crew
  • *
  • Posts: 808
  • Gender: Male
  • Respect: +45
Re: Solid Gold
« Reply #4 on: October 11, 2007, 12:24:50 PM »
0
Looking good!  Make sure to do the shiny trucks when you replace them.

dnhouston

  • Crew
  • *
  • Posts: 499
  • Gender: Male
  • Respect: +109
    • Dusty Junction & Northwestern
Re: Solid Gold
« Reply #5 on: October 11, 2007, 07:23:06 PM »
0
The roof looks great!  I can't tell from the photos, did you weather the ends?
David

Ryan87

  • Crew
  • *
  • Posts: 799
  • Gender: Male
  • Stay thirsty my friend...
  • Respect: 0
Re: Solid Gold
« Reply #6 on: October 11, 2007, 07:36:08 PM »
0
Thanks for the comments guys! I can't believe how much a sober second opinion helps (keep em coming)...

When taking the photos one thing that was bugging me was the door area, that will have to be the area of a boxcar I practice next. (so much detail) The steps I totally forgot about... :-[ I weathered the ends but not much, just a fade & wash (another area I have to practice) and the trucks will be deglossed when I finish them!

Does anyone have any sugustions on how to weather cast on ladders to get a natural look? this has been something thats bugged me...

Thanks again
Cheers

Swimming in a sea of Action Red...

tom mann

  • Administrator
  • Crew
  • *****
  • Posts: 10658
  • Representing The Railwire on The Railwire
  • Respect: +705
    • http://www.chicagoswitching.com
Re: Solid Gold
« Reply #7 on: October 11, 2007, 08:46:07 PM »
0


Does anyone have any sugustions on how to weather cast on ladders to get a natural look? this has been something thats bugged me...


Use a nice dark wash...maybe burnt umber and ivory black mixed?

Just enough to make them pop out a little bit:

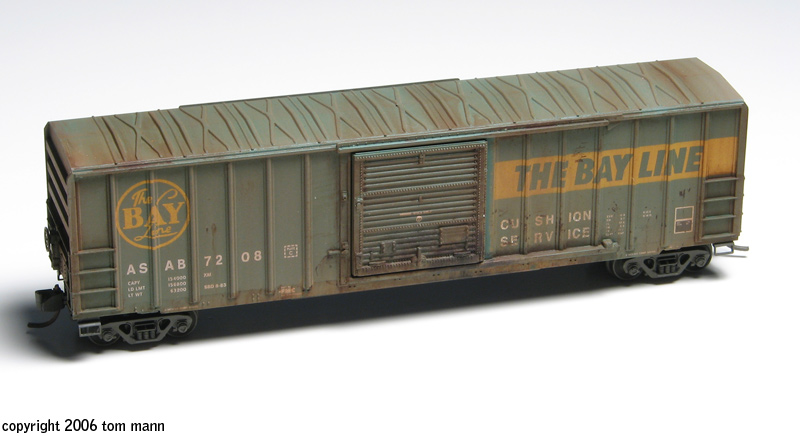

http://www.mannresearch.com/rr/asab/boxcar_01.jpg

Ryan87

  • Crew
  • *
  • Posts: 799
  • Gender: Male
  • Stay thirsty my friend...
  • Respect: 0
Re: Solid Gold
« Reply #8 on: October 11, 2007, 10:57:27 PM »
0
Thats the look I want!

I've noticed that once my wash is dry the paint has gathered around the edges of the cavities between the grab irons leaving a ugly light spot in the middle... (I hope that explains it :P)

Is my wash to thin?
Swimming in a sea of Action Red...

tom mann

  • Administrator
  • Crew
  • *****
  • Posts: 10658
  • Representing The Railwire on The Railwire
  • Respect: +705
    • http://www.chicagoswitching.com
Re: Solid Gold
« Reply #9 on: October 12, 2007, 06:48:26 AM »
0
what are you thinning the paint with?

Ryan87

  • Crew
  • *
  • Posts: 799
  • Gender: Male
  • Stay thirsty my friend...
  • Respect: 0
Re: Solid Gold
« Reply #10 on: October 12, 2007, 10:44:41 PM »
0
Cheap wiper fluid from work. (we get it in a 65gallon drum)
Swimming in a sea of Action Red...

ryourstone

  • Crew
  • *
  • Posts: 482
  • Respect: +5
Re: Solid Gold
« Reply #11 on: October 13, 2007, 01:40:19 PM »
0
I've noticed that once my wash is dry the paint has gathered around the edges of the cavities between the grab irons leaving a ugly light spot in the middle... (I hope that explains it :P)

Is my wash to thin?

Yeah probably, sounds like the wash is puddling. I usually thin the artist's acrylics to about the consistency of model RR paint, then apply only where I want it and wipe down the excess. Work on a small area at a time so you can clean it up before it dries. Here's an example of a yellow car:
