Angus Shops

  • Crew
  • *
  • Posts: 819
  • Respect: +290
Re: The New Northern Central
« Reply #345 on: March 22, 2021, 10:28:24 AM »
0
Looks like a CPR 4-6-0 is in your future.
Logged

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 26052
  • Head Kino
  • Respect: +11510
    • Conrail 1285
Re: The New Northern Central
« Reply #346 on: March 26, 2021, 09:57:32 AM »
+1
I'm in a bit of a holding pattern while waiting for my AC unit to arrive so I've been working on some other fronts.

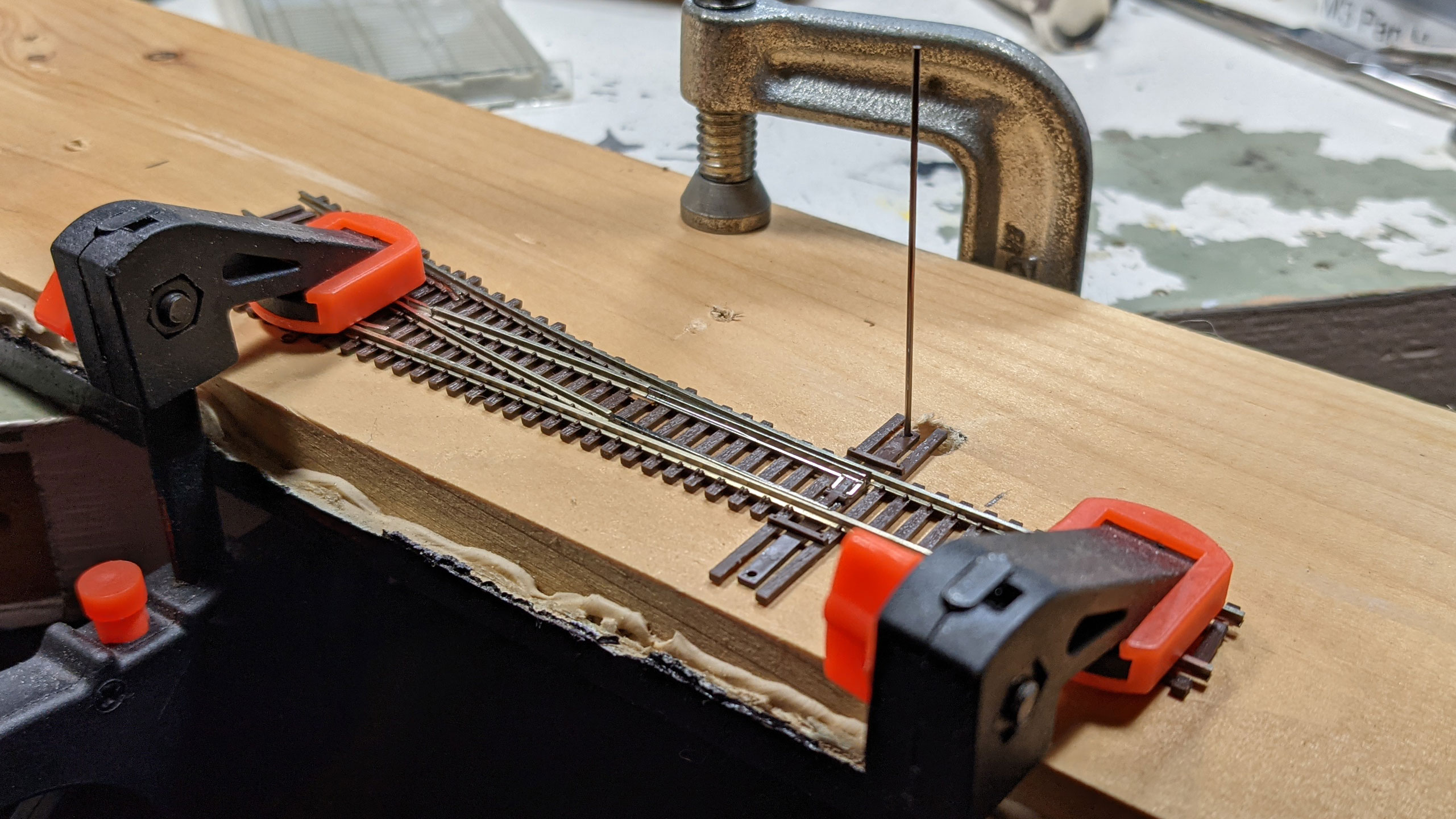

Specifically, working on the under-table mounts that I'm making to make implementing @skytop35 's slide switch solution. These make it easy to mount everything with screws AND importantly, give me the ability to make minor adjustments (a trick I loved on @rodsup9000 's awesome Tortoise mounts).

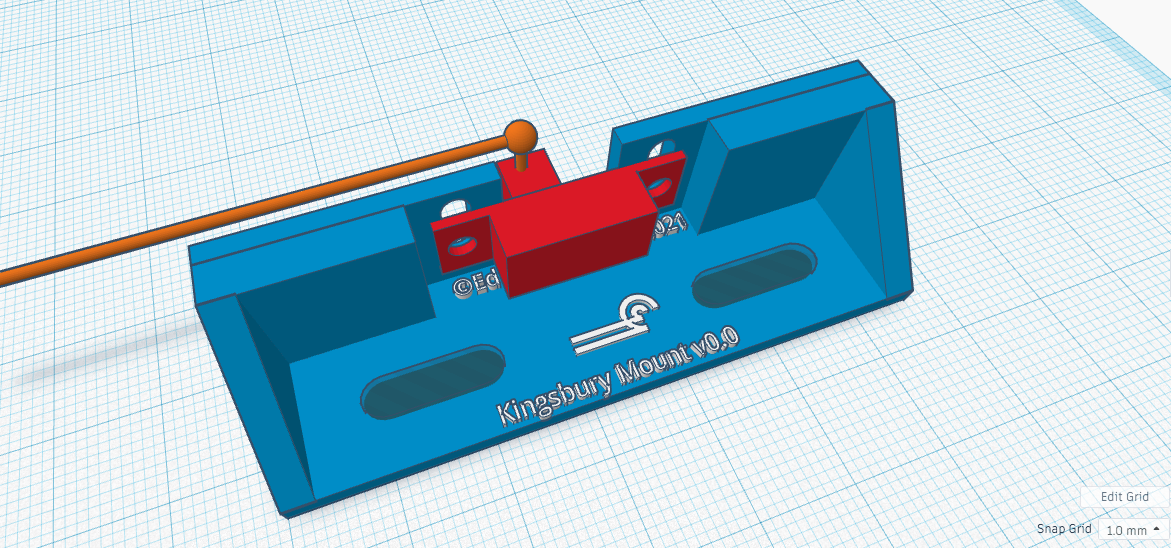

The original concept.

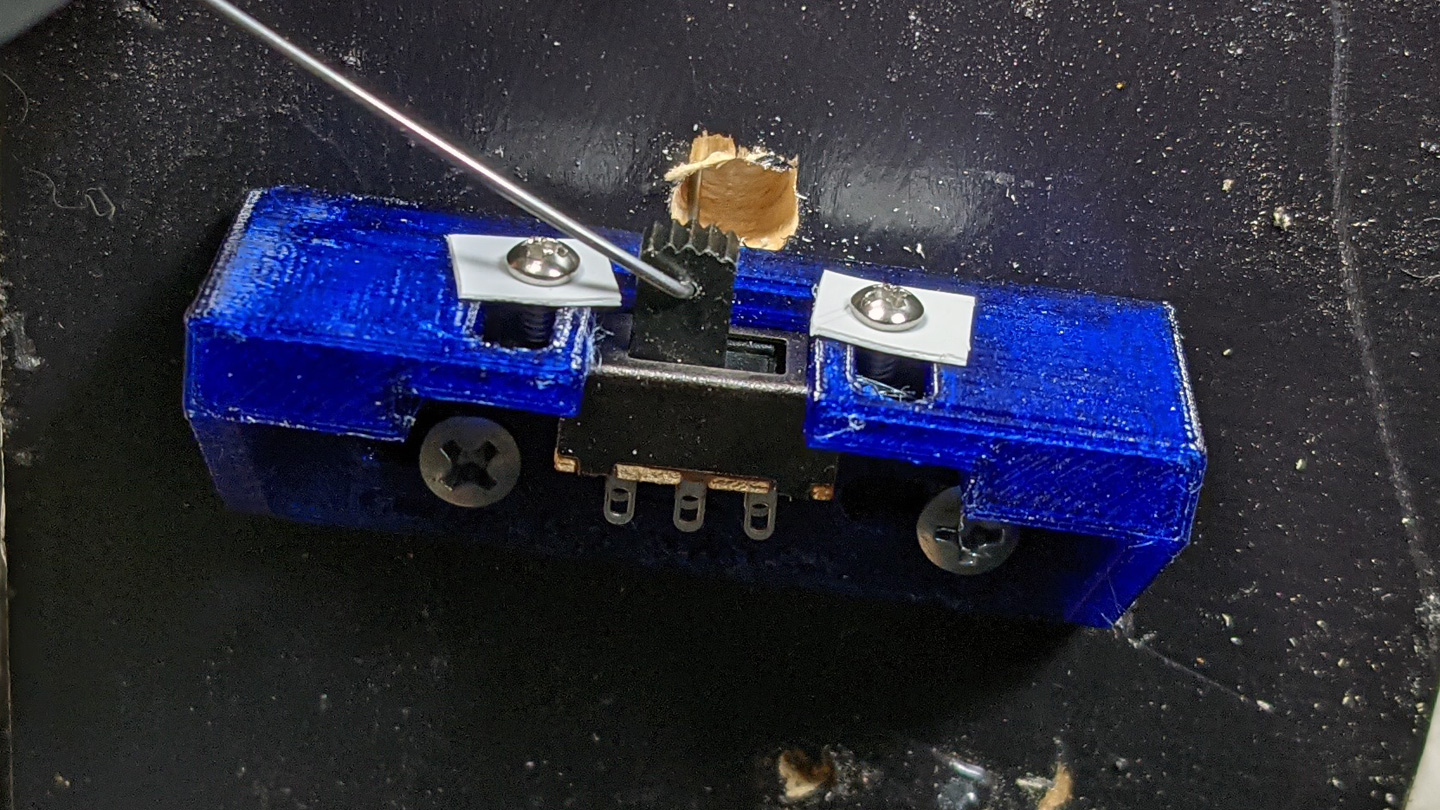

To reality.

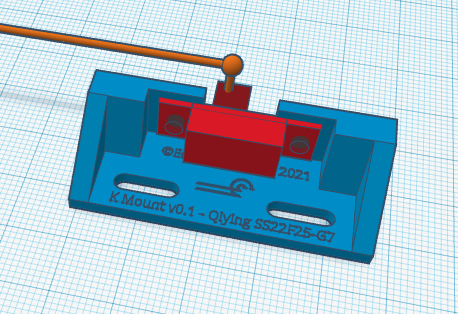

And now to refinements.



You can see my original print left the screw holes way too large (hence my ghetto a$$ washers) and was larger than really necessary. I also need to get some of the Dude Bro hardware to test fit it and see what I need to do to accommodate it.

I'm also thinking about the benchwork for the rest of the layout. I'm going to be making L girders to hang off of the brackets for the wall section. These will support risers (I'm thinking 1x2 or 1x3) and then some sort of roadbed. I'm not sure what to do in that regard, and am open to suggestions.

Cookie cutter is a possibility, but it seems awfully wasteful of suddenly expensive plywood.

I like the idea of splines, but don't have a table saw to rip down the thin strips to make them. For that reason, I was thinking of maybe trying PVC trim strips. Any thoughts?

The other thing I am looking for some feedback on is how to stabilize it all on the carpet. In the past I've used NTRAK style leg leveling bolts (which have worked ok), but I'm curious if anyone's done anything they liked better.
Logged

Philip H

  • Crew
  • *
  • Posts: 9025
  • Gender: Male
  • Respect: +1794
    • Layout Progress Blog
Re: The New Northern Central
« Reply #347 on: March 26, 2021, 10:37:54 AM »
0
Did you get the throw distance and force vectors all straightened out?
Logged
Philip H.
Chief Everything Officer
Baton Rouge Southern RR - Mount Rainier Division.

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 26052
  • Head Kino
  • Respect: +11510
    • Conrail 1285
Re: The New Northern Central
« Reply #348 on: March 26, 2021, 10:50:15 AM »
0
Quote from: Philip H on March 26, 2021, 10:37:54 AM
Did you get the throw distance and force vectors all straightened out?

Yeah. It seems to work fine. The only way to improve it would be to use a larger switch since the ones I got off Amazon were smaller than the ones that @skytop35 used.
Logged

skytop35

  • Crew
  • *
  • Posts: 807
  • Respect: +893
Re: The New Northern Central
« Reply #349 on: March 26, 2021, 01:34:03 PM »
0
Sweet !
Logged
Bill Denton

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 26052
  • Head Kino
  • Respect: +11510
    • Conrail 1285
Re: The New Northern Central
« Reply #350 on: March 28, 2021, 07:58:29 PM »
0
God dammit. This isn't benchwork.

[ Guests cannot view attachments ]
Logged

x600

  • Crew
  • *
  • Posts: 512
  • Respect: +314
Re: The New Northern Central
« Reply #351 on: March 28, 2021, 09:00:49 PM »
0
Ha!     I just finished 2200 sq ft. The bad news is, it hurts worse at the far wall,  but the good news is it feels great when it's done. Good start.

Greg O.
Logged

CRL

  • Crew
  • *
  • Posts: 2345
  • Needs More Dirt.
  • Respect: +643
Re: The New Northern Central
« Reply #352 on: March 29, 2021, 06:36:15 PM »
0
I was surprised when the engineered wood floor was installed in our house. The installer used adhesive and a rubber mallet to persuade the wood planks into position.

It was on the second floor, installed over a plywood subfloor deck glued to 2x12 floor joists. No squeaks or creaking at all.
Logged

OldEastRR

  • Crew
  • *
  • Posts: 3780
  • Gender: Male
  • Respect: +508
Re: The New Northern Central
« Reply #353 on: March 30, 2021, 02:07:46 AM »
+4
Now all Ed has to do is two boards a night .... :trollface:
Logged

reinhardtjh

  • Crew
  • *
  • Posts: 3153
  • Respect: +423
Re: The New Northern Central
« Reply #354 on: March 30, 2021, 11:55:45 AM »
0
An interesting coincidence.  I just got the Spring 2021 (V54, #1) of The Keystone (PRRT&HS Mag) and there is a significant article in it about the Parkton Station including drawings and the history of the NCR.  I haven't had a chance to read it in depth, but it looks interesting.
Logged
John H. Reinhardt
PRRT&HS #8909
C&O HS #11530
N-Trak #7566

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 26052
  • Head Kino
  • Respect: +11510
    • Conrail 1285
Re: The New Northern Central
« Reply #355 on: March 30, 2021, 12:04:47 PM »
0
Quote from: reinhardtjh on March 30, 2021, 11:55:45 AM
An interesting coincidence.  I just got the Spring 2021 (V54, #1) of The Keystone (PRRT&HS Mag) and there is a significant article in it about the Parkton Station including drawings and the history of the NCR.  I haven't had a chance to read it in depth, but it looks interesting.

Oh hell yeah!

I didn't know that was coming, but the timing couldn't be better.
Logged

Mark5

  • Crew
  • *
  • Posts: 11855
  • Always with the negative waves Moriarty ...
  • Respect: +932
Re: The New Northern Central
« Reply #356 on: March 30, 2021, 12:51:20 PM »
0
And here's a cool article about the NC and Parkton (by Frank Wrabel):

http://www.hsobc.org/wp-content/uploads/2017/06/htv040n1.pdf
Logged

reinhardtjh

  • Crew
  • *
  • Posts: 3153
  • Respect: +423
Re: The New Northern Central
« Reply #357 on: March 30, 2021, 02:37:21 PM »
0
Quote from: reinhardtjh on March 30, 2021, 11:55:45 AM
An interesting coincidence.  I just got the Spring 2021 (V54, #1) of The Keystone (PRRT&HS Mag) and there is a significant article in it about the Parkton Station including drawings and the history of the NCR.  I haven't had a chance to read it in depth, but it looks interesting.

Quote from: Mark5 on March 30, 2021, 12:51:20 PM
And here's a cool article about the NC and Parkton (by Frank Wrabel):

http://www.hsobc.org/wp-content/uploads/2017/06/htv040n1.pdf

Same author for both articles - Frank Wrabel.  Not identical articles but comparing the PDF I see similar information.  At least in the first few paragraphs.  I didn't check past that.

Logged
John H. Reinhardt
PRRT&HS #8909
C&O HS #11530
N-Trak #7566

Mark5

  • Crew
  • *
  • Posts: 11855
  • Always with the negative waves Moriarty ...
  • Respect: +932
Re: The New Northern Central
« Reply #358 on: March 30, 2021, 03:14:59 PM »
0
Quote from: reinhardtjh on March 30, 2021, 02:37:21 PM
Same author for both articles - Frank Wrabel.  Not identical articles but comparing the PDF I see similar information.  At least in the first few paragraphs.  I didn't check past that.

Cool - I know Frank. The article was published 2008. Didn't know he had another similar article in the latest PRRT&HS.

I should congrat him on both now I guess ...  :D
Logged

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 26052
  • Head Kino
  • Respect: +11510
    • Conrail 1285
Re: The New Northern Central
« Reply #359 on: March 30, 2021, 03:53:55 PM »
0
Quote from: Mark5 on March 30, 2021, 03:14:59 PM
Cool - I know Frank. The article was published 2008. Didn't know he had another similar article in the latest PRRT&HS.

I should congrat him on both now I guess ...  :D

I've met him once I think, but I really need to know him better.  Mark, can you point him in my direction and tell him about this? http://conrail1285.com/forget-coal-country-the-northern-central-is-back/
