Best Of Detailing the Micro-Trains DODX M1 Abrams Tank Sets

[gi-depp]

news from @samusi01 : M1074 JAB

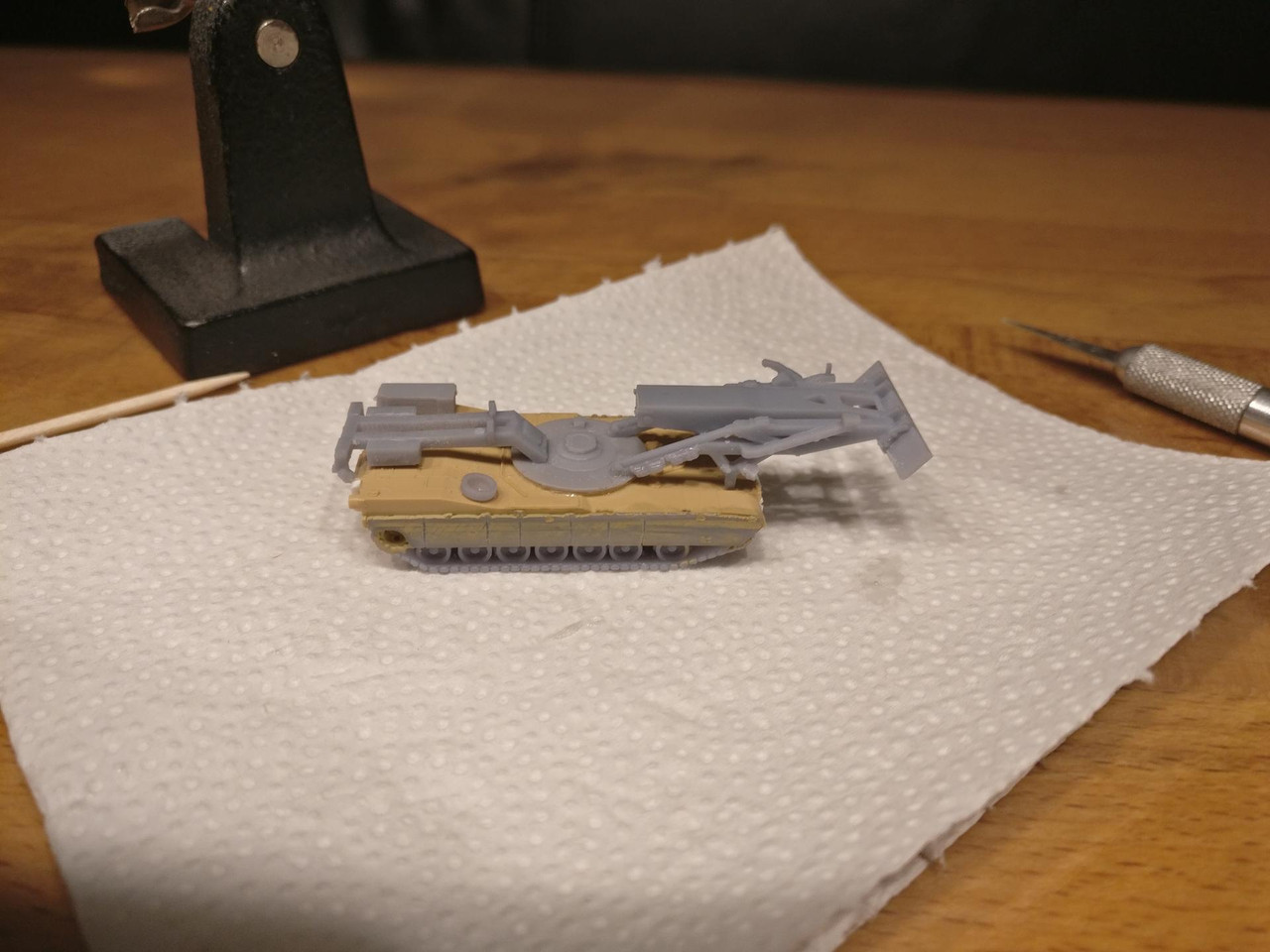

asembling:

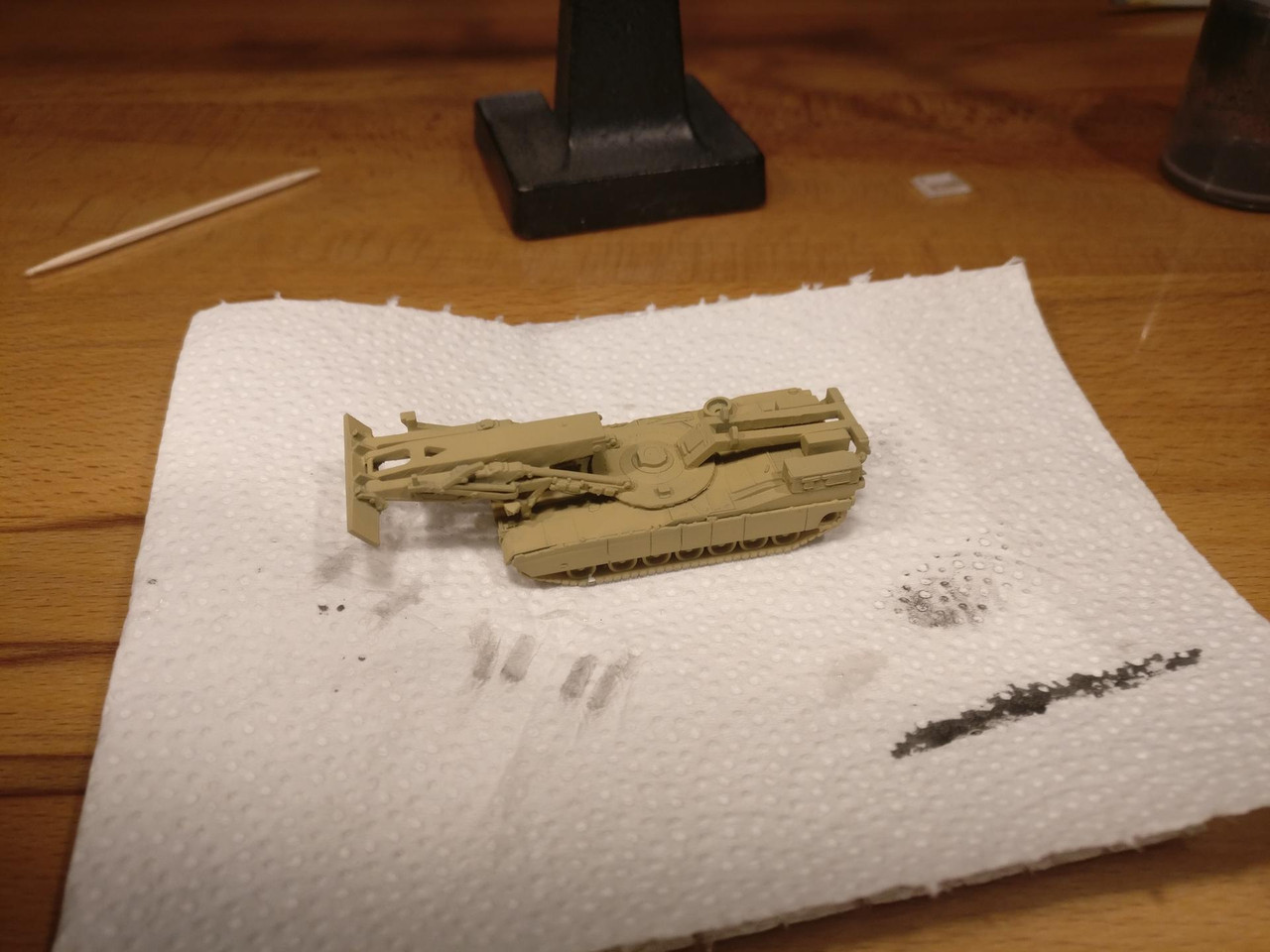

first layer desert with airbrush:




very nice model, perfect job

[gi-depp]

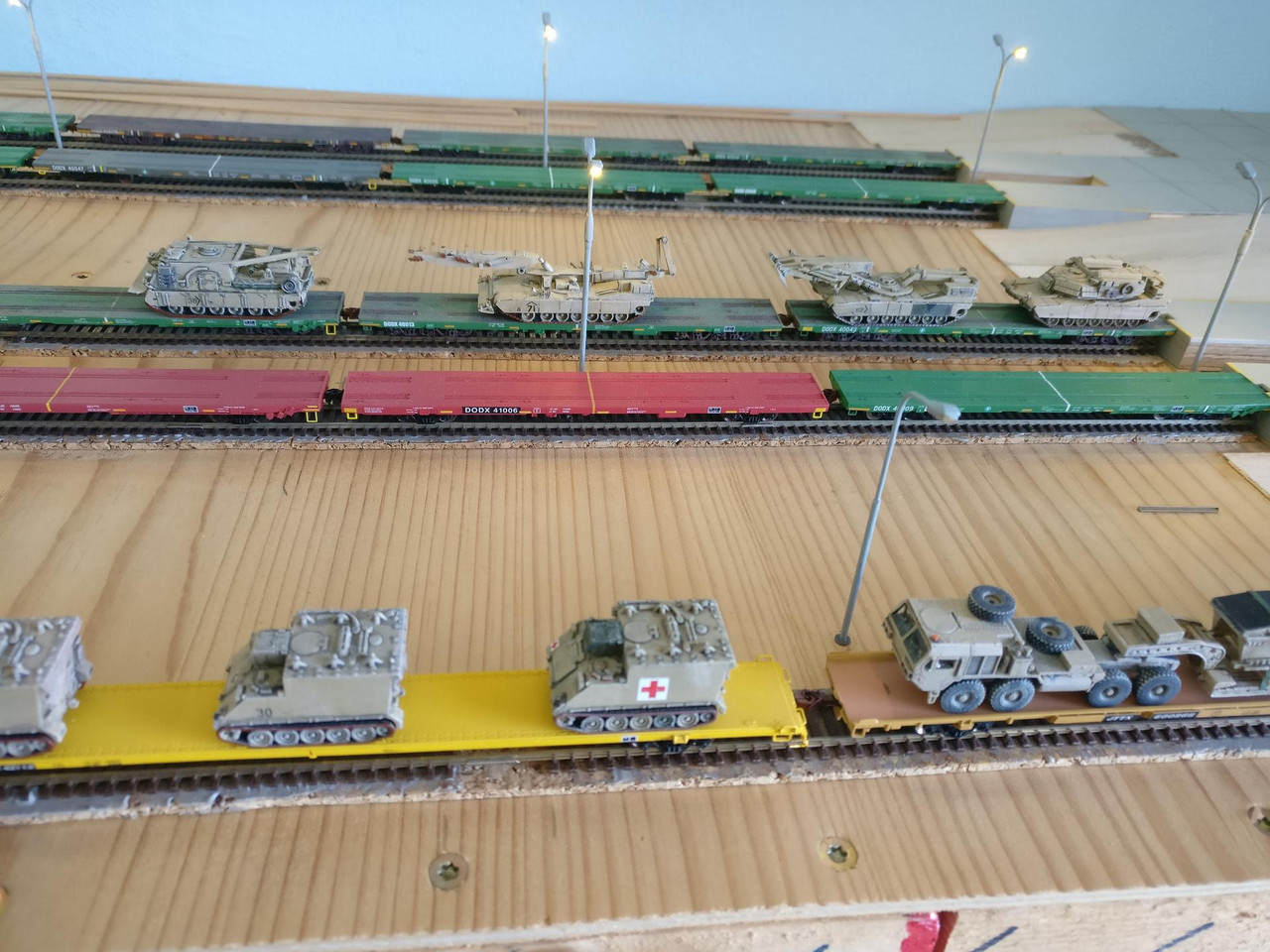

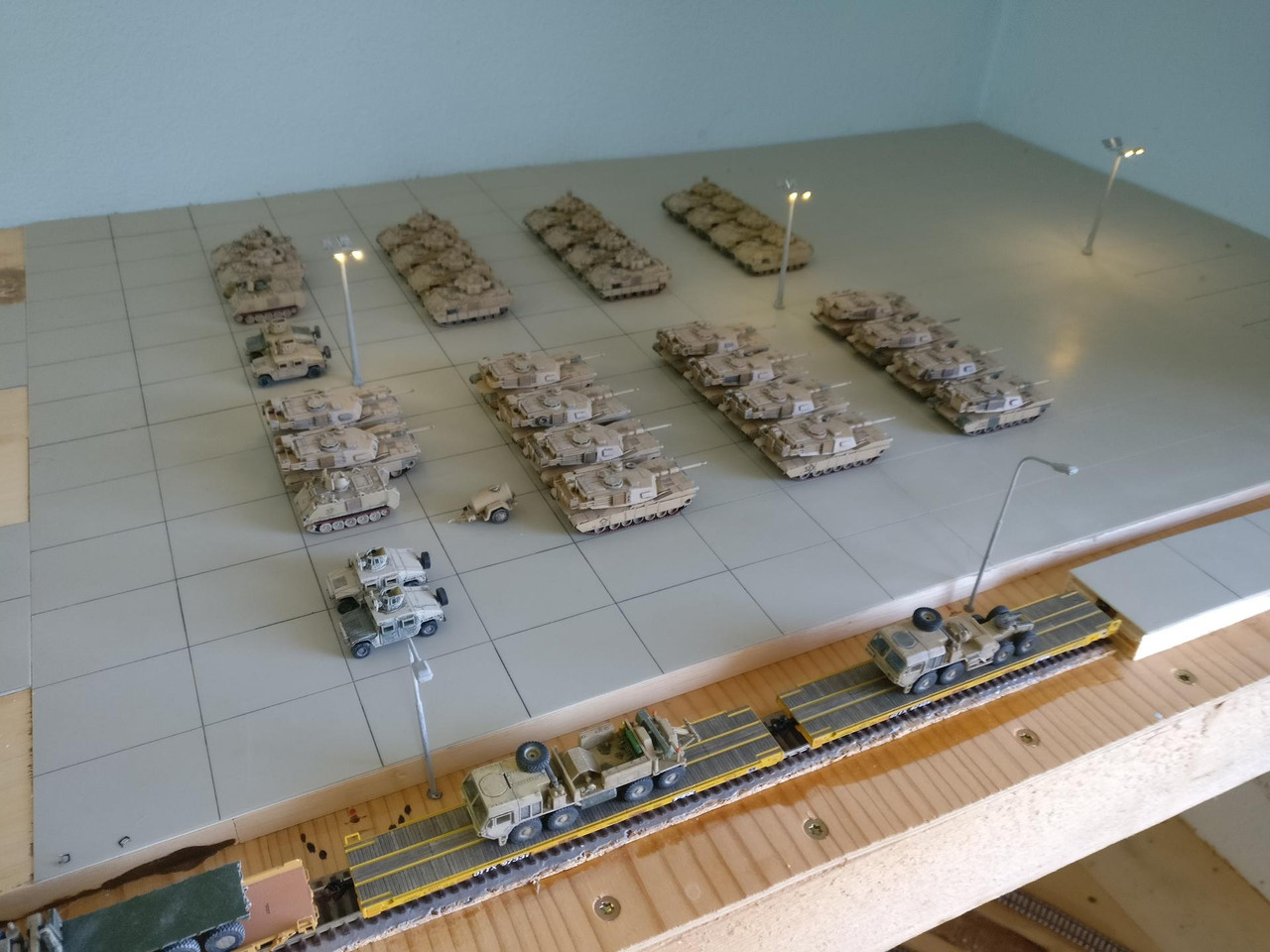

just finished

[crrcoal]

They look great! If you get a chance, can you show how you make the railhead?

[gi-depp]

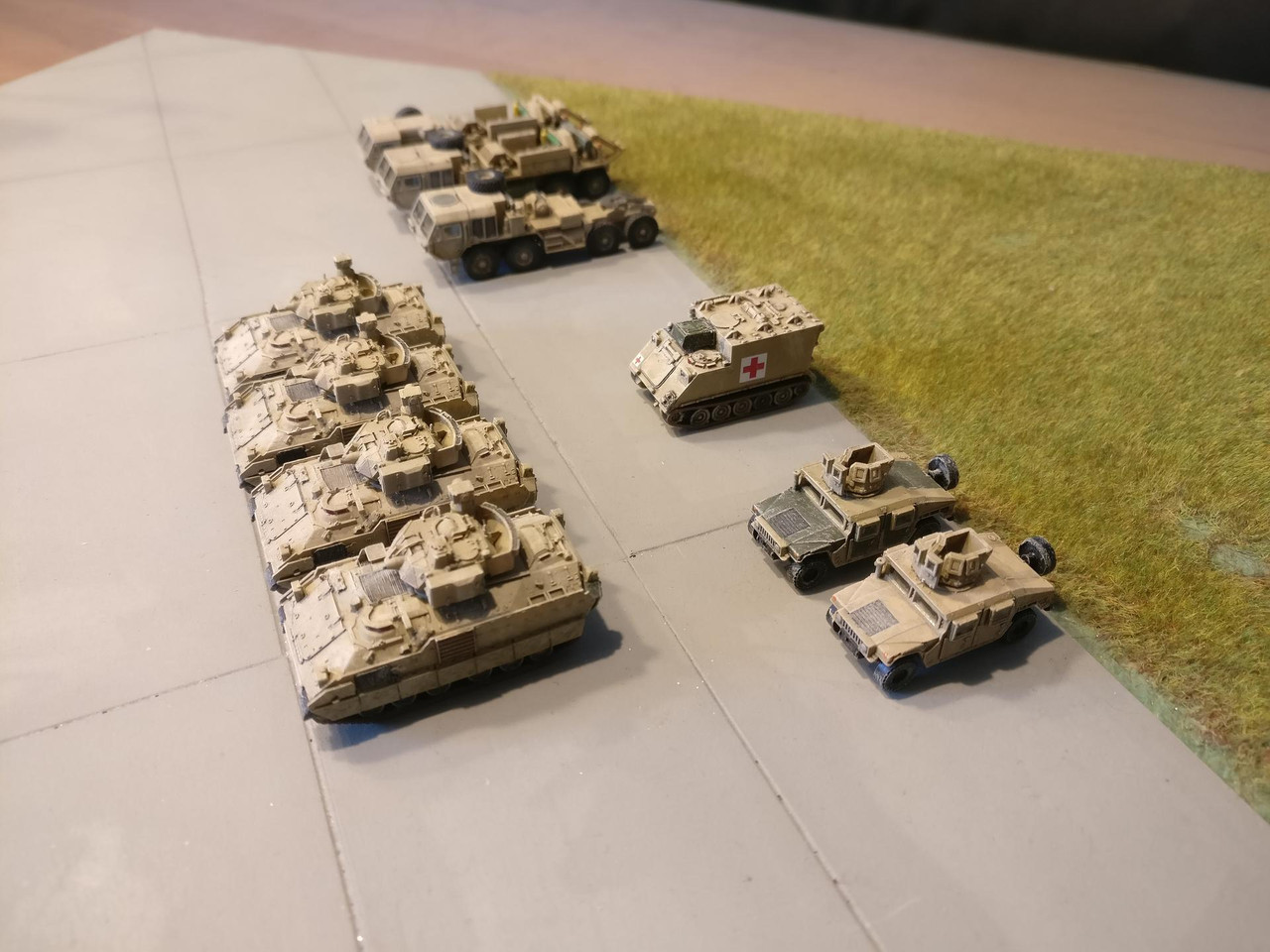

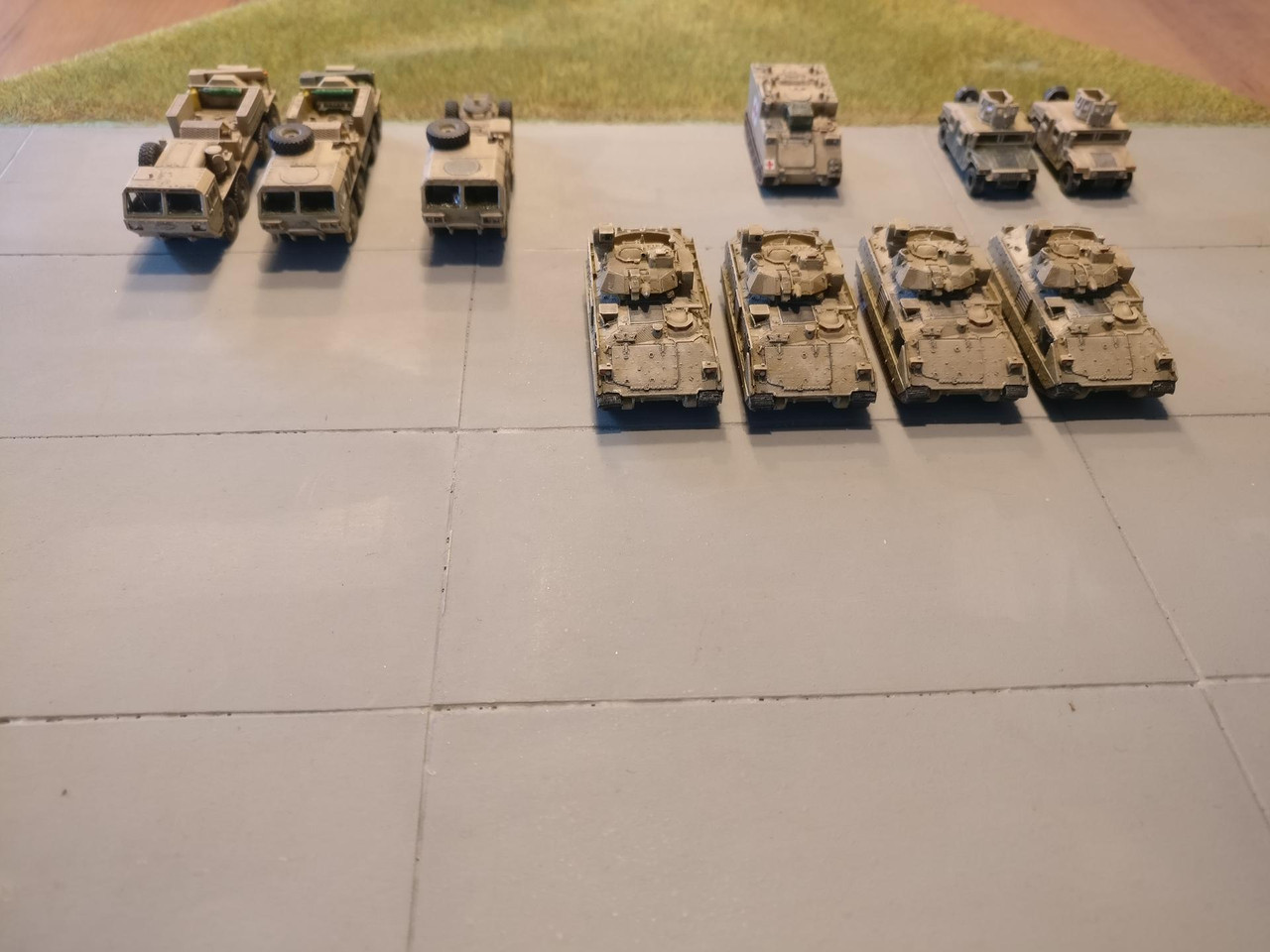

Have now finished the 3rd platoon of the C-Company 1-37AR and the two HMMWV's of the HQ-Sec.
Also finished a M577A3 Medical, M983A4 and M984A4 Wrecker, the M984A1 Wrecker is an older one.

[Frank Amato]

Epic all around, really well done!  Your 1:160 vehicles look better than many 1:35 armor models I see!

[gi-depp]

testdrive with two Kato SD40N

https://www.youtube.com/watch?v=-HWrtxE4c3Q

[POVC]

Awesome!

[sirenwerks]

Shouldn't you start working on an M1E3 soon?

[gi-depp]

I think the M1E3 can wait for now. However, I do need to start thinking about replacing the M113 with the AMPV.

[aikorob]

most excellent!!
I know you probably mentioned this 20 or so pages back............................what about tie downs and blocking?

[gi-depp]

I do not want to fix the vehicles in place, as I want to remain flexible.
With well-laid tracks, this is not a problem.

[cgw]

question for all,   would not the blade on the m1043 jab be down on the flat car during shipping.    The model has it suspended in air.    if the hydraulics let go it would cause some damage during shipping.   I do not know and just trying to get a better understanding of how the military shipped these things.

[pjm20]

question for all,   would not the blade on the m1043 jab be down on the flat car during shipping.    The model has it suspended in air.    if the hydraulics let go it would cause some damage during shipping.   I do not know and just trying to get a better understanding of how the military shipped these things.

TM 55-2200-001-12

[cgw]

the document  "EA PAM 55-19"  is a good guide for for the tie downs on most of the equipment folks model.

[samusi01]

would not the blade on the m1043 jab be down on the flat car during shipping.

The bottom image in this post (https://www.therailwire.net/forum/index.php?topic=45583.msg835642#msg835642) has on the left the M1074 JAB, shown in with the deployment mechanism in transport configuration. If the blade were down, as in this image:



setting aside the fact that the blade sits right where the tiedowns normally go on the railcar deck, I'd be worried about it becoming a dimensional load based on how far the mast sits above the deck.

On the right is the M104 Wolverine. Total production of this model is around 20% of the M1074 production, and photos of the M104 on flatcars aren't common... of the two I have, only one is of the quality to show blade position and in that one it's raised, as MTL models. The most recent edition of 55-19 (an amended rev 7 or later) may have updated information on the M104, and perhaps the M1074 which is newer than 55-19 rev 7.
