Could back-to-back turnouts cause a problem?
« on: June 02, 2014, 01:03:20 AM »
0

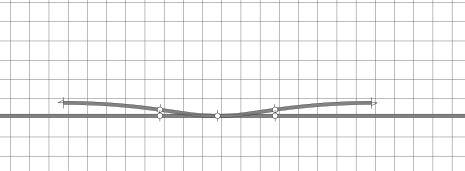

As the subject asks, is there any problem with having two turnouts like this?


They are #7. The frogs are live.   They branch off just to two short sidings that will serve industries.
I don't see how this could cause any reliability or derailment issues, but I thought I'd ask.

I should mention that it would probably be rare for a train to have to back out of one siding, through both turnouts
and up onto the other siding, but if it did, it would be pushing 1 or 2 cars at most.  These are small industry sidings, not
long storage tracks.

Would there be any benefit from a short stretch of straight track between them, instead of putting them
dead back-to-back?

Thanks.
« Last Edit: July 02, 2017, 05:15:23 PM by mmagliaro »

Chris333

  • Crew
  • *
  • Posts: 13146
  • Respect: +2460
Re: Could back-to-back turnouts cause a problem?
« Reply #1 on: June 02, 2014, 01:06:29 AM »
0
I've done it before without problem. Maybe run a feeder to the upper most rail.

eric220

  • The Pitt
  • Crew
  • *
  • Posts: 3405
  • Gender: Male
  • Continuing my abomination unto history
  • Respect: +376
    • The Modern PRR
Re: Could back-to-back turnouts cause a problem?
« Reply #2 on: June 02, 2014, 02:13:29 AM »
0
I sincerely hope not...

-Eric

Modeling a transcontinental PRR
http://www.pennsylvania-railroad.com

bdennis

  • Crew
  • *
  • Posts: 447
  • Gender: Male
  • Respect: +30
    • Delaware & Hudson Champlain Division
Re: Could back-to-back turnouts cause a problem?
« Reply #3 on: June 02, 2014, 02:17:33 AM »
0
Wont be an issue even with #5 Atlas Code 55 turnouts.. Can push 20+ cars through that sort of arrangement even with #5's and truck mounted MT's
Brendan Dennis
N scale - Delaware & Hudson Champlain Division

randgust

  • Crew
  • *
  • Posts: 1542
  • Respect: +680
    • Randgust N Scale Kits
Re: Could back-to-back turnouts cause a problem?
« Reply #4 on: June 02, 2014, 07:37:13 AM »
0
I can think of some longer-wheelbase steam that would probably revolt if it had to go from diverging side to diverging side, mostly because the angle of attack on the point may be high enough to allow climbing.  That doesn't sound like your situation though.

You will have to do the power feed in from the point area between the two.

ednadolski

  • Crew
  • *
  • Posts: 2935
  • Respect: +332
Re: Could back-to-back turnouts cause a problem?
« Reply #5 on: June 02, 2014, 09:01:28 AM »
0
As the subject asks, is there any problem with having two turnouts like this?


I don't see much problem with that.  I would be wary if one of the turnouts were flipped to diverge toward the opposite side of the main track, as that could create a troublesome S-curve situation.

Ed

MichaelWinicki

  • Crew
  • *
  • Posts: 1991
  • Respect: +83
Re: Could back-to-back turnouts cause a problem?
« Reply #6 on: June 02, 2014, 09:56:40 AM »
0
I've got the exact same track configuration... 2 #7's, back to back, but instead of two industrial sidings I have two passing sidings– one on a curve no less!

And no issues.  Run C630's, SD45's and have even run an 2-8-8-2 through them with no problems.

And to make it worse, I have a #5, butting into the 2 #7's, so it's a #5, #7, #7 in an unbroken string... And no issues with the #5 either.

mmagliaro

  • Crew
  • *
  • Posts: 4506
  • Gender: Male
  • Respect: +881
    • Maxcow Online
Re: Could back-to-back turnouts cause a problem?
« Reply #7 on: June 02, 2014, 11:39:32 AM »
0
Thanks all.  That's about what I thought.
By the way, for the record, when we talk about troublesome or long-wheelbase steam,
articulateds don't usually count.  A 2-8-8-2 has two pivoting engine trucks, each of which
has small drivers (like a Mikado).  Those things can negotiate curves more easily than
a 4-coupled, large-drivered, rigid-frame steam engine like a 4-8-4.  If these were #5's, I would be worried
about shoving a 4-8-4 from one diverging route to the other.   But not with #7's.
And besides, I don't expect to be using a 4-8-4 for switching duties on two little industrial sidings!

Thanks again.  I wanted to confirm my observation of the situation before I plunked in that second turnout.


nstars

  • Crew
  • *
  • Posts: 419
  • Gender: Male
  • Respect: +29
Re: Could back-to-back turnouts cause a problem?
« Reply #8 on: June 02, 2014, 12:05:23 PM »
0
Thanks all.  That's about what I thought.
By the way, for the record, when we talk about troublesome or long-wheelbase steam,
articulateds don't usually count.  A 2-8-8-2 has two pivoting engine trucks, each of which
has small drivers (like a Mikado).  Those things can negotiate curves more easily than
a 4-coupled, large-drivered, rigid-frame steam engine like a 4-8-4.  If these were #5's, I would be worried
about shoving a 4-8-4 from one diverging route to the other.   But not with #7's.
And besides, I don't expect to be using a 4-8-4 for switching duties on two little industrial sidings!

Thanks again.  I wanted to confirm my observation of the situation before I plunked in that second turnout.

Your proposal with a left and right hand turnout should not pose a big problem. A situation with 2 right or left hand turnouts could indeed be a problem for long-wheelbased steamers, but also for f.i. MT heavyweights coupled together. The body mounted coupler may create a problem.

Marc

rschaffter

  • Crew
  • *
  • Posts: 162
  • Respect: +3
Re: Could back-to-back turnouts cause a problem?
« Reply #9 on: June 02, 2014, 12:20:01 PM »
0
I sincerely hope not...


That arrangement makes a good case for making double-slip switches available...   ;)
Cheers,
Rod Schaffter

nstars

  • Crew
  • *
  • Posts: 419
  • Gender: Male
  • Respect: +29
Re: Could back-to-back turnouts cause a problem?
« Reply #10 on: June 02, 2014, 05:39:14 PM »
0
That arrangement makes a good case for making double-slip switches available...   ;)

I agree. Unfortunately, the only reliable double slip I know is the Peco code 55. All the other commercial available double slips are not very good. Perhaps the Fasttrack Jig is an option if you like building turnouts yourself.

Marc

ednadolski

  • Crew
  • *
  • Posts: 2935
  • Respect: +332
Re: Could back-to-back turnouts cause a problem?
« Reply #11 on: June 02, 2014, 08:24:43 PM »
0


Looks to me like the tracks marked with the 'X' are redundant.   If you eliminate them, you could also eliminate four turnouts.

This presumes that the point-to-point turnouts aren't close enough to each other to cause operational issues, but if that is so then you have bigger issues ;)

Ed

CBQ Fan

  • Crew
  • *
  • Posts: 2268
  • Respect: +92
Re: Could back-to-back turnouts cause a problem?
« Reply #12 on: June 02, 2014, 09:05:06 PM »
0


Looks to me like the tracks marked with the 'X' are redundant.   If you eliminate them, you could also eliminate four turnouts.

This presumes that the point-to-point turnouts aren't close enough to each other to cause operational issues, but if that is so then you have bigger issues ;)

Ed

I think the tracks are set up that way for a passenger station.  It allows trains to go from one lead to the other side of the station.
Brian

Way of the Zephyr

Cajonpassfan

  • Crew
  • *
  • Posts: 3443
  • Respect: +647
Re: Could back-to-back turnouts cause a problem?
« Reply #13 on: June 02, 2014, 09:47:07 PM »
0
I think the tracks are set up that way for a passenger station.  It allows trains to go from one lead to the other side of the station.

And allow for simultaneous movements, something high density passenger stations require. I love it, and it's the redundancies that make it work! Of course I'd like it even better with slip switches.... 8)
OttoK.

peteski

  • Crew
  • *
  • Posts: 20577
  • Gender: Male
  • Respect: +1827
    • Coming (not so) soon...
Re: Could back-to-back turnouts cause a problem?
« Reply #14 on: June 03, 2014, 02:00:03 AM »
0
And allow for simultaneous movements, something high density passenger stations require. I love it, and it's the redundancies that make it work! Of course I'd like it even better with slip switches.... 8)
OttoK.

I asked Eric few weeks back why no double-slips. He decided against them for several reasons (in another thread).
