Re: New Brass EP-2 assembly & Mod clinic
« Reply #765 on: September 28, 2014, 10:18:19 PM »
0
Just a thought - when you put the wheelset in the acid bath, could you protect the gear with something like petroleum jelly (after testing to see how the jelly reacts with the acid, of course)?

George

George,  That was a good idea, but I don't think it was necessary this time.

One thing I learned from this is all alloys are different-- and selenium acid like some alloys better than others.

For example- brass.   The brass that was in the axle of the old 1960s axle I had was eaten alive by the acid.  But the brass gears in this Kumata 2003 loco were barely touched in 1 minute 10 second.

So it worked out fine----- in this case.
Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

peteski

  • Crew
  • *
  • Posts: 24407
  • Gender: Male
  • Honorary Resident Curmudgeon
  • Respect: +2931
    • Coming (not so) soon...
Re: New Brass EP-2 assembly & Mod clinic
« Reply #766 on: September 28, 2014, 10:21:05 PM »
0
Ron,
Jax also sells several different "flavors" of the blackening solutions, depending on the metals it is to be used on. There probably are some differences in the chemistry.
. . . 42 . . .

u18b

  • Crew
  • *
  • Posts: 2867
  • Respect: +761
    • My website
Re: New Brass EP-2 assembly & Mod clinic
« Reply #767 on: September 28, 2014, 10:21:37 PM »
0
this is a wonderful thread that shows your skilled and gifted work
thanks for sharing

kindest regards
Gary

Gary, thanks for your encouragement.  It has been quite an adventure!
Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

u18b

  • Crew
  • *
  • Posts: 2867
  • Respect: +761
    • My website
Re: New Brass EP-2 assembly & Mod clinic
« Reply #768 on: September 28, 2014, 10:25:17 PM »
0
Ron,
Jax also sells several different "flavors" of the blackening solutions, depending on the metals it is to be used on. There probably are some differences in the chemistry.

I'm sure there are probably different acid bases.  Like nitric, phosphoric, and hydrochloric (and many others.).

I think they make one just for brass.
This one was for Iron Steel, & Nickel.
Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

u18b

  • Crew
  • *
  • Posts: 2867
  • Respect: +761
    • My website
Re: New Brass EP-2 assembly & Mod clinic
« Reply #769 on: September 29, 2014, 12:41:03 PM »
0
Wow.
Reached a milestone.

Overall the model is finally finished- almost one year to the day!!!!!!!!!  LOL.

I still want to post about balancing the cabs.
And of course lots of photos.  LOTS of photos of the finished product.

I'm going to take a small break this week to finish up a couple of projects.
I have a couple of repairs.
I need to finish the brass Pennsy Silverliners that I bought for my Kumata book (so I can sell them and get my money back).
And I have two articles that are so close to being finished, it is silly.

On the EP-2, I still have a lot of work to do.

The next major step with be catenary on my photo modules.

I want to take some good photos of this model hoping it will do well in a magazine.
Unfortunately, since I'm a deep south CSX modeler, I have no catenary.
So I'll have to add it to a photo module.

I studied I good bit of Milw cat wire, and feel this is something close to what I plan to make.

Two plain poles bent outward, supporting two central wires.



Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

nkalanaga

  • Crew
  • *
  • Posts: 7517
  • Respect: +406
Re: New Brass EP-2 assembly & Mod clinic
« Reply #770 on: September 30, 2014, 02:02:54 AM »
0
Usually the "span wire" style was used on curves, at section breaks, or for multiple track, but there's no reason it couldn't be used on straight track.  It would be much easier to keep straight than single poles, especially on a photo track, where it will get bumped.

Don't forget the "stubbed" poles, as that was a very noticeable part of the MILW main line.  The story I heard was that they didn't expect the electification to last long enough for the untreated cedar poles to rot.  It did, and rather than replace all of the poles, they drilled holes next to each one, stuck a short creosoted stub in them, and steel banded the old poles to the stubs.  The system lasted long enough that the stubs were starting to decay.
N Kalanaga
Be well

peteski

  • Crew
  • *
  • Posts: 24407
  • Gender: Male
  • Honorary Resident Curmudgeon
  • Respect: +2931
    • Coming (not so) soon...
Re: New Brass EP-2 assembly & Mod clinic
« Reply #771 on: September 30, 2014, 02:14:21 AM »
0



Hey Ron, why didn't you model those cool triple bulb headlights?  You could squeeze three 0402 LEDs in the headlight housing, couldn't you? ;)
. . . 42 . . .

u18b

  • Crew
  • *
  • Posts: 2867
  • Respect: +761
    • My website
Re: New Brass EP-2 assembly & Mod clinic
« Reply #772 on: September 30, 2014, 06:16:09 PM »
0
Actually, I did give thought to it.

Round disc with three holes.
Probably would use fiber optics.

Those kinds of headlights were used just before the disastrous rebuild of 1953.

Since I was modeling 1948, there were not around yet.
Ron Bearden
CSX N scale Archivist
http://u18b.com

"All get what they want-- not all like what they get."  Aslan the Lion in the Chronicles of Narnia by C.S.Lewis.

u18b

  • Crew
  • *
  • Posts: 2867
  • Respect: +761
    • My website
Re: New Brass EP-2 assembly & Mod clinic
« Reply #773 on: October 01, 2014, 12:05:43 AM »
0
Not sure if I should start another thread.....
This post is directed at those of you who speak Japaneese and hang out at Japaneese modeling sites.

I wish I had photos of other Kumata RTR painted locos.
It is a bit of a puzzle, and I would love more info not only to better understand this project, but also for my Kumata book I will publish one day.

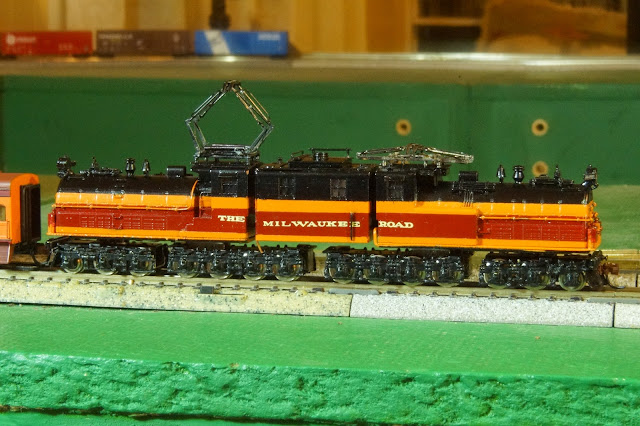

This was the last Ready To Run fully painted EP-2 that Kumata had.  I'm guessing it was a showroom sample- and it has problems (like having two B end shells).  But at any rate.....

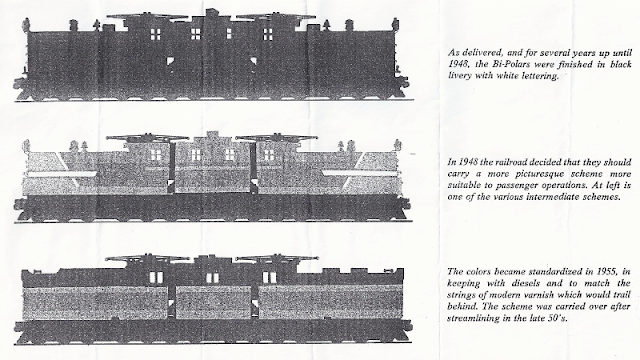

Now here is a paper that came with the model.
