Re: The B&O Delaware Avenue Branch
« Reply #210 on: June 16, 2023, 12:16:30 PM »
0
I was thinking about Philly Navy Yard

Have you been over to TPA? If not, we should go (and hit the new Pollock Johnny's on the way).

TrainCat2

  • Crew
  • *
  • Posts: 2006
  • Gender: Male
  • I'm here to take a beating from RailWire members.
  • Respect: +888
    • TrainCat Model Sales
Re: The B&O Delaware Avenue Branch
« Reply #211 on: June 27, 2023, 01:53:54 PM »
0
A couple of questions for those in the know. What is the distance from the water to the top of the pier warf ?? it looks to be 6' to 10' in the distant images I have seen. Also, how choppy is the water between the piers so I know what type of ripples/chop I need to put on the surface??

Thanks.
Regards
boB Knight

I Spell boB Backwards

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 24792
  • Head Kino
  • Respect: +9332
    • Conrail 1285

John

  • Administrator
  • Crew
  • *****
  • Posts: 13419
  • Respect: +3265
Re: The B&O Delaware Avenue Branch
« Reply #213 on: June 27, 2023, 05:32:31 PM »
0
A couple of questions for those in the know. What is the distance from the water to the top of the pier warf ?? it looks to be 6' to 10' in the distant images I have seen. Also, how choppy is the water between the piers so I know what type of ripples/chop I need to put on the surface??

Thanks.

The Delaware River isn't that rough usually - also unless the wind is from the direction of the pier, you will generally not get a lot of wave action ..  what you will see sometime is the the reflection of waves from the solid shore  -- so if you have incoming waves, then you will likely have a smaller wave outbound .. and thats also dependent on the angle the wave strikes the shore :0



https://waterdata.usgs.gov/monitoring-location/01467200/#parameterCode=00065&timeSeriesId=259402&period=P365D

« Last Edit: June 27, 2023, 05:41:03 PM by John »

Angus Shops

  • Crew
  • *
  • Posts: 780
  • Respect: +275
Re: The B&O Delaware Avenue Branch
« Reply #214 on: June 27, 2023, 10:41:37 PM »
0
A couple of questions for those in the know. What is the distance from the water to the top of the pier warf ?? it looks to be 6' to 10' in the distant images I have seen. Also, how choppy is the water between the piers so I know what type of ripples/chop I need to put on the surface??

Thanks.

Does this include tides?
« Last Edit: November 13, 2023, 12:15:58 PM by Angus Shops »

TrainCat2

  • Crew
  • *
  • Posts: 2006
  • Gender: Male
  • I'm here to take a beating from RailWire members.
  • Respect: +888
    • TrainCat Model Sales
Re: The B&O Delaware Avenue Branch
« Reply #215 on: November 13, 2023, 10:04:15 AM »
+1
It's been awhile as I have been at a new job and find myself working a lot during eves and weekends with my new projects. Can't complain since the company gave me full reign to make changes and a 45% increase making things much easier. I'll post a pic later of the engines I'm doing in the crew lounge.

I have still been building some new buildings and expanding the modules which I will have to update y'all. I have the Thanksgiving week off as well as the last week of the year. My goal is to get track down and turnout machines in place over the next 6 weeks. My question to the masses is if you had to do anything special when using switch machines such as Tortoises or Servos going through the base +2in of foam? I'm guessing here that I may need a larger dia hole or a slot for the wire movement to the points. About the music wire, will I need a different stiffer wire or possibly add a piece of brass tube over the wire to eliminate flexing?
Regards
boB Knight

I Spell boB Backwards

nickelplate759

  • Crew
  • *
  • Posts: 3354
  • Respect: +1052
Re: The B&O Delaware Avenue Branch
« Reply #216 on: November 13, 2023, 10:23:09 AM »
0
when I use Tortoises in 2" foam, I replace the wire with slightly thicker "music wire" (I think it was .039").   That required carefully drilling out the hole on the Tortoise actuating lever (not difficult).   That said, the thicker wire will NOT work with Micro-Engineering turnouts - drilling a larger hole in the throwbar leads to breaking the throwbar more often than not.     No problem with Atlas code 55.
George
NKPH&TS #3628

I'm sorry Dave, I'm afraid I can't do that.

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 24792
  • Head Kino
  • Respect: +9332
    • Conrail 1285
Re: The B&O Delaware Avenue Branch
« Reply #217 on: November 13, 2023, 01:09:42 PM »
0
I've done the tortoise through 2" foam thing before. It's ok.

But looking back, what I'd do is go the bell crank route where the wire "rotates" instead of "sweeps". It makes all sorts of things easier.

TrainCat2

  • Crew
  • *
  • Posts: 2006
  • Gender: Male
  • I'm here to take a beating from RailWire members.
  • Respect: +888
    • TrainCat Model Sales
Re: The B&O Delaware Avenue Branch
« Reply #218 on: November 13, 2023, 04:07:37 PM »
0
Thanks. I am actually using Servos and Fast Tracks turnouts, but mentioned Tortoises since they are similar in concept and operation. As for the bellcrank method, I think it might be worth trying it out. Maybe worth looking at the RDS (Rotary Drive System) from RC Planes to direct drive the sweeper arm.
Regards
boB Knight

I Spell boB Backwards

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 24792
  • Head Kino
  • Respect: +9332
    • Conrail 1285
Re: The B&O Delaware Avenue Branch
« Reply #219 on: November 14, 2023, 01:33:41 PM »
0
Ooh, that'd be slick!

TrainCat2

  • Crew
  • *
  • Posts: 2006
  • Gender: Male
  • I'm here to take a beating from RailWire members.
  • Respect: +888
    • TrainCat Model Sales
Re: The B&O Delaware Avenue Branch
« Reply #220 on: November 18, 2023, 04:14:43 PM »
+6

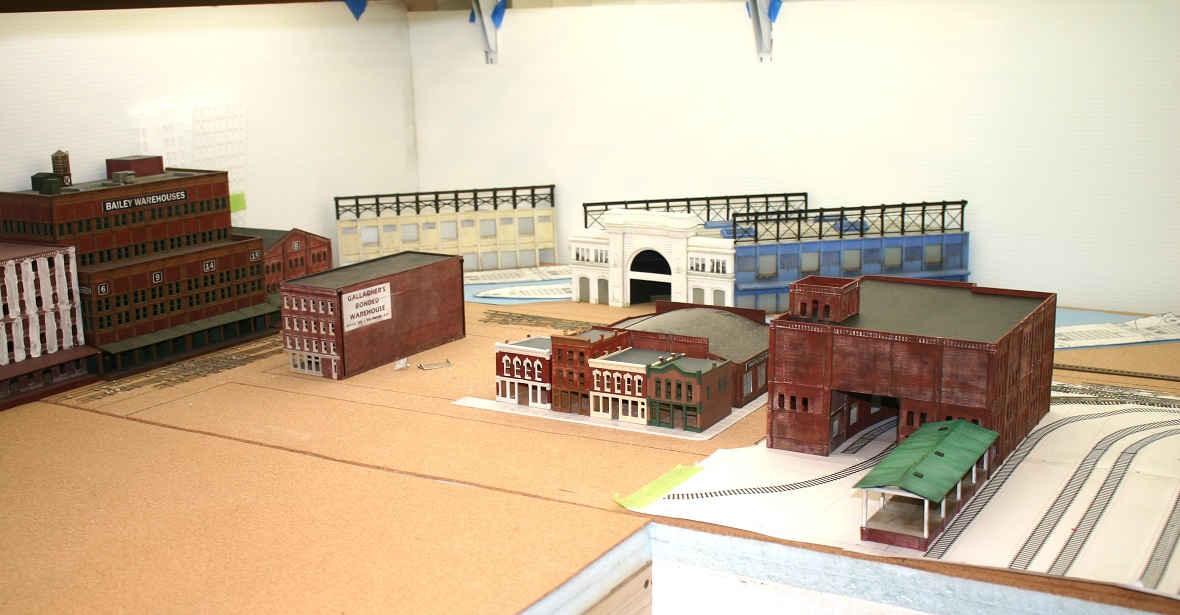

With the new job, progress has been limited. I have been working on some new buildings (DPM) that will go behind the Penn Warehouse & Safe Deposit as well as Durbin Paper from DPM Modulars.

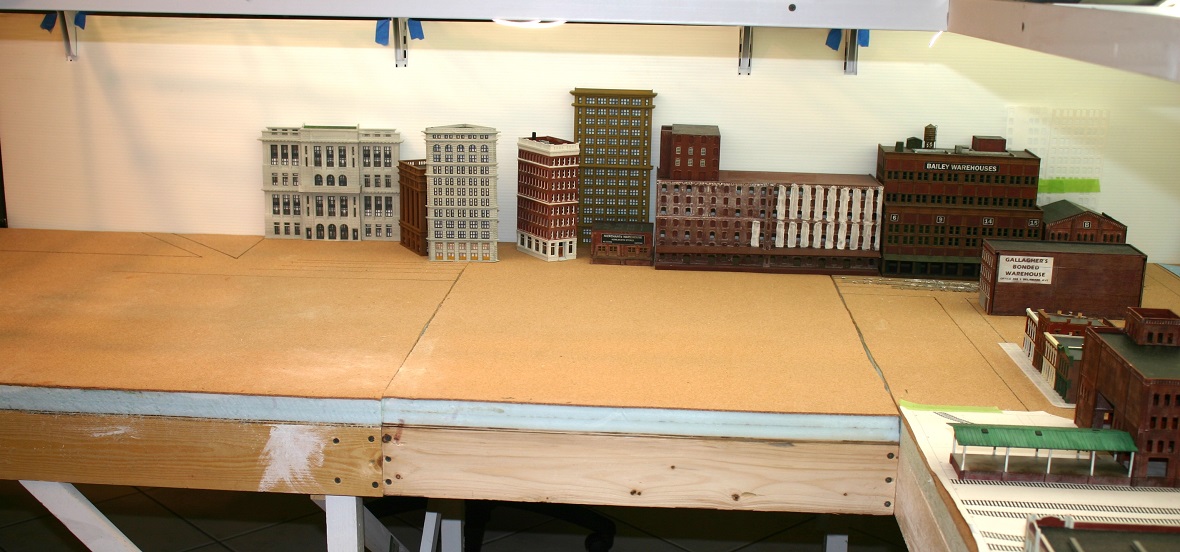

I realized that when I built the actual modules, the sorting yard on module #1 was going to be too short with a train only being able to deliver 6 cars. So I built a 2ft module to extend #1 to 7ft long and now will be able to process a 14 car delivery. It will also allow me to add a scene that I had been trying to figure out if/where I could put it.




Regards
boB Knight

I Spell boB Backwards

TrainCat2

  • Crew
  • *
  • Posts: 2006
  • Gender: Male
  • I'm here to take a beating from RailWire members.
  • Respect: +888
    • TrainCat Model Sales
Re: The B&O Delaware Avenue Branch
« Reply #221 on: February 12, 2024, 02:35:02 PM »
0
Hi All,

I have changed my mind (found a better one on Craigslist from Abby Normal) and will install lighting throughout the Delaware Ave layout. I have a batch of 2700K warm white 0603 sized LEDS inbound and want recommendations for magnet wire and a source. I'll use the magnet wire from a junction block between the feeders to the structure and the actual LEDS.

A related note is that I have also begun testing some 2700K COB lights that I can fade into while fading out the 5000K daylights. I did install a couple of PWM dimmers on both 5000K and 2700K strips. Not perfect as I can only get down to 8% lighting, but still pretty nice. I also obtained some RGB COB strips that I can create some sunset and dusk effects. Kinda liking this!

I have several new structures completed and in construction. I will try to get a better update going soon.
Regards
boB Knight

I Spell boB Backwards

peteski

  • Crew
  • *
  • Posts: 33035
  • Gender: Male
  • Honorary Resident Curmudgeon
  • Respect: +5364
    • Coming (not so) soon...
Re: The B&O Delaware Avenue Branch
« Reply #222 on: February 12, 2024, 04:14:50 PM »
0
The N-gineering sells a nice green/red pair of magnet wire, but you are probably looking for larger quantity.
https://www.ngineering.com/accessories.htm

Remington Industries has a wide range of gauges and quantity available, but some thinner gauges only come in a single color.
https://www.remingtonindustries.com/magnet-wire/

Of course there is always amazon and eBay. Just search for magnet wire.
