Re: Progress on The Shelf
« Reply #30 on: October 23, 2010, 06:49:37 PM »
0
Looks grand Ed, I love the shelf idea with foam on wood or just foam on shelf brackets. It eliminates
building a cabin to support a peanut, For an industrial design like your are doing of Baltimore, I love
all the open space, that can become urban scenery or simple spurs off to industries.
Chuck Geiger
Page, AZ
provencountrypd@gmail.com

tom mann

  • Administrator
  • Crew
  • *****
  • Posts: 10658
  • Representing The Railwire on The Railwire
  • Respect: +705
    • http://www.chicagoswitching.com
Re: Progress on The Shelf
« Reply #31 on: October 23, 2010, 08:18:20 PM »
0
Am I missing something or is this really just 2" foam on shelf brackets?

No man, don't you see it?!

Ed, my 2" foam on brackets has not warped in almost 1 1/2 years.  But, the support joists are a lot closer together.

My advice?  Just spend 10 bucks on 1x2 pine and build a simple box frame.  It'll still be lightweight and fast (as you say) but provide a tad more structural heft.  Think about this:  if you open that window all that foam will blow across the room. 8)

rswinnerton

  • Crew
  • *
  • Posts: 1312
  • Gender: Male
  • The Anti-Ed
  • Respect: +19
    • Luxury Rail Travel
Re: Progress on The Shelf
« Reply #32 on: October 23, 2010, 09:58:11 PM »
0
Ed,
Invest in the wood to box in your foam. Remember that most of your friends are clumsy oafs and will wantonly distroy foam once Yuenglings are applied.

Unless you want to simulate earthquakes...
Russ
Russ Swinnerton
Dr. of Ferroequinology
www.LuxRailTravel.com

sirenwerks

  • Crew
  • *
  • Posts: 5221
  • Gender: Male
  • Respect: +150
Re: Progress on The Shelf
« Reply #33 on: October 23, 2010, 11:03:12 PM »
0
Russ has got a great point. We all have lush capacity.
Now seeking Pacific NW N scalers to create a Modutrak-style modular club featuring NP's shared mainline between Seattle and Portland. PM me if interested.

chuck geiger

  • Crew
  • *
  • Posts: 2176
  • Gender: Male
  • Respect: +550
    • THE IMPOSSIBLE RAILROAD
Re: Progress on The Shelf
« Reply #34 on: October 23, 2010, 11:52:38 PM »
0


Foam in foam.............
Chuck Geiger
Page, AZ
provencountrypd@gmail.com

chuck geiger

  • Crew
  • *
  • Posts: 2176
  • Gender: Male
  • Respect: +550
    • THE IMPOSSIBLE RAILROAD
Re: Progress on The Shelf
« Reply #35 on: October 23, 2010, 11:54:01 PM »
0
No man, don't you see it?!

Ed, my 2" foam on brackets has not warped in almost 1 1/2 years.  But, the support joists are a lot closer together.

My advice?  Just spend 10 bucks on 1x2 pine and build a simple box frame.  It'll still be lightweight and fast (as you say) but provide a tad more structural heft.  Think about this:  if you open that window all that foam will blow across the room. 8)

You will have a solid frame to connect fascia to.





Bruce Petty's awesome benchworkj for his LA SP layout. I built
my last layout using his design and the boxes drop into back
block of the bracket. http://lariverrailroads.com/newshelf1.html

« Last Edit: October 24, 2010, 12:01:47 AM by chuck geiger »
Chuck Geiger
Page, AZ
provencountrypd@gmail.com

DKS

  • The Pitt
  • Crew
  • *
  • Posts: 11340
  • Your choice for ANAL...
  • Respect: +1913
    • DKS Home
Re: Progress on The Shelf
« Reply #36 on: October 24, 2010, 08:15:55 AM »
0
^ That's how I (eventually) built the frame under the all-foam WR&N IV. I added an L-shaped trim strip to the ends of the 1x2s on the shelf brackets and used it to store rolling stock that I'd swap out on the layout. I also glued a Foamcore facia to the front of the foam to hide the edge of the foam and the frame. The Foamcore was then covered with woodgrain Contact plastic shelf paper to create a nice finished surface. Control panels were secured to the foamcore, and I carved out areas behind them in the foam with a hot wire tool. The knobs along the top edge of the facia are pushpins soldered into K&S brass tubing, which actuates the turnouts. The long black stripe is a strip of Velcro on which to hang throttles. I also added Velcro to the backs of test meters and other similar devices so they could be hung wherever it was convenient, and they'd be easy to read while I was working on electrical gear on the layout.

« Last Edit: October 24, 2010, 08:24:47 AM by David K. Smith »
"Life's a piece of sh!t when you look at it."
                                       —Monty Python

Dave V

  • Global Moderator
  • Crew
  • *
  • Posts: 8721
  • Gender: Male
  • The Route of the Galloping Goose
  • Respect: +3637
    • Dave Vollmer's N Scale Pennsy
Re: Progress on The Shelf
« Reply #37 on: October 24, 2010, 08:40:09 AM »
0

The long black stripe is a strip of Velcro on which to hang throttles. I also added Velcro to the backs of test meters and other similar devices so they could be hung wherever it was convenient, and they'd be easy to read while I was working on electrical gear on the layout.


I do the Velcro thing too, for throttles and the skirt.  I've also Velcroed car card boxes to the layout.

Silver San Juan Scenic Line

Member SlimRail Modular Colorado Narrow Gauge
http://www.slimrail.net/

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 17861
  • Has a degree in American History & Culture.
  • Respect: +2123
    • Conrail 1285
Re: Progress on The Shelf
« Reply #38 on: October 26, 2010, 10:19:26 PM »
0

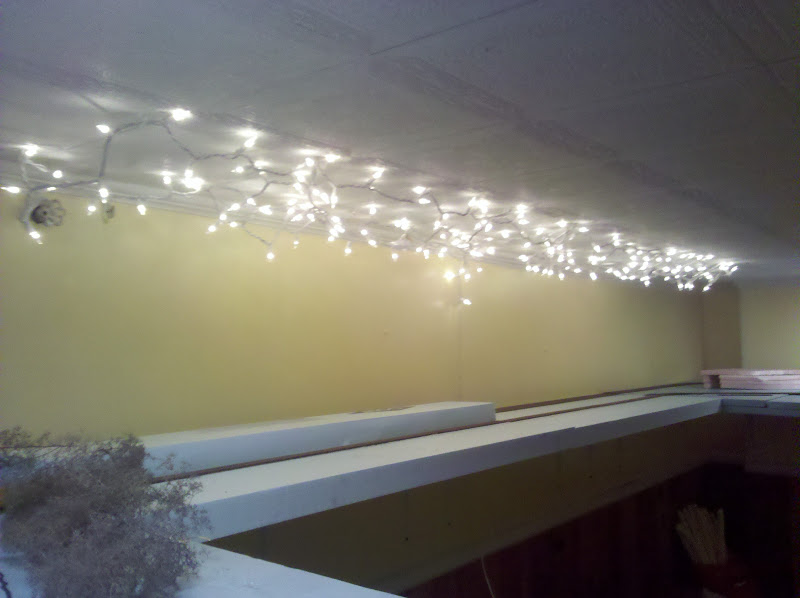

I've done some more tonight, including rigging up the lighting for the center (although I think I want to get a few more strings, it's still pretty dark):

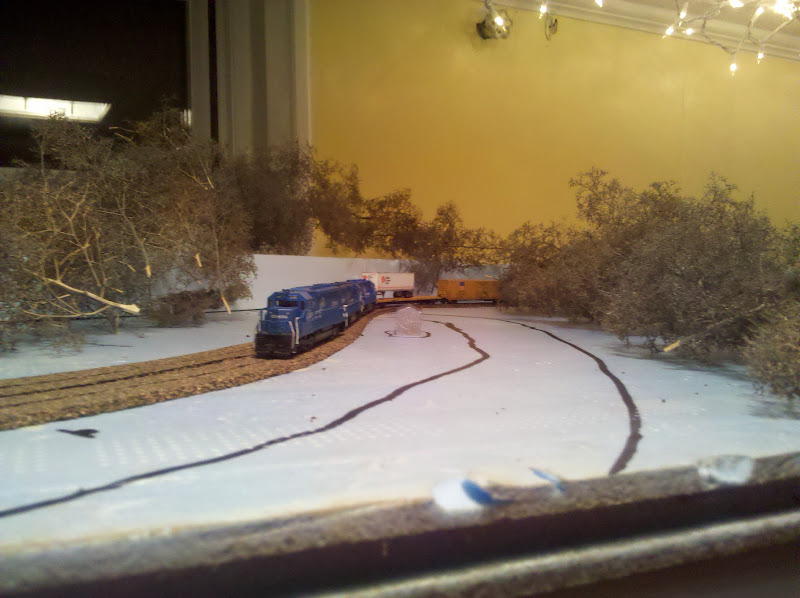

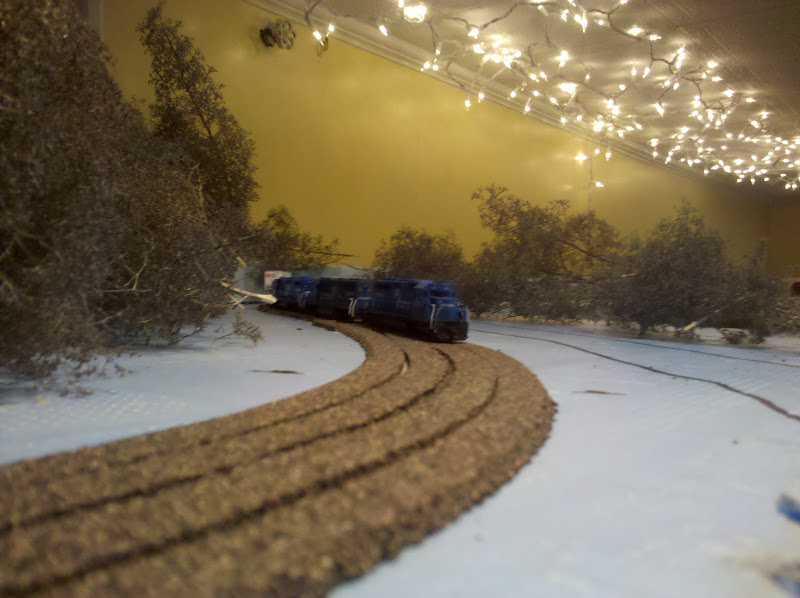

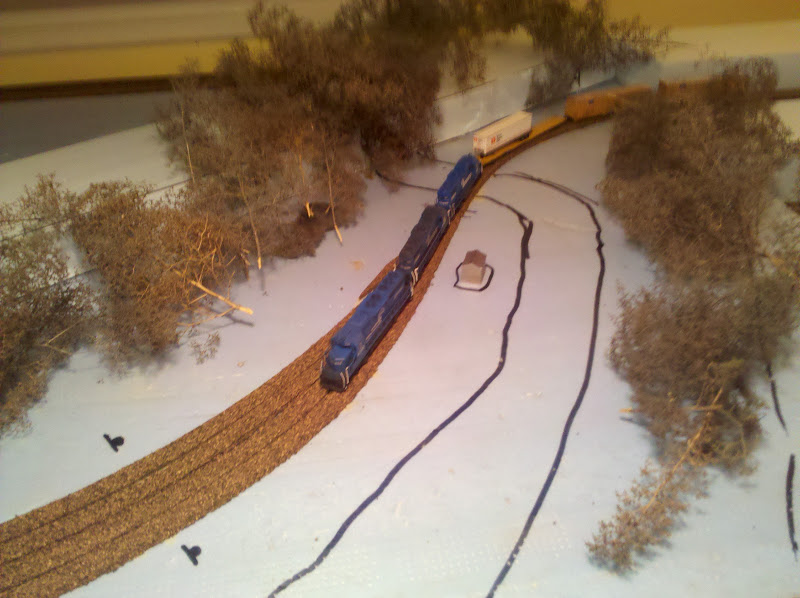

And mocked up the scene at the one end with some of the trees from the kidney:

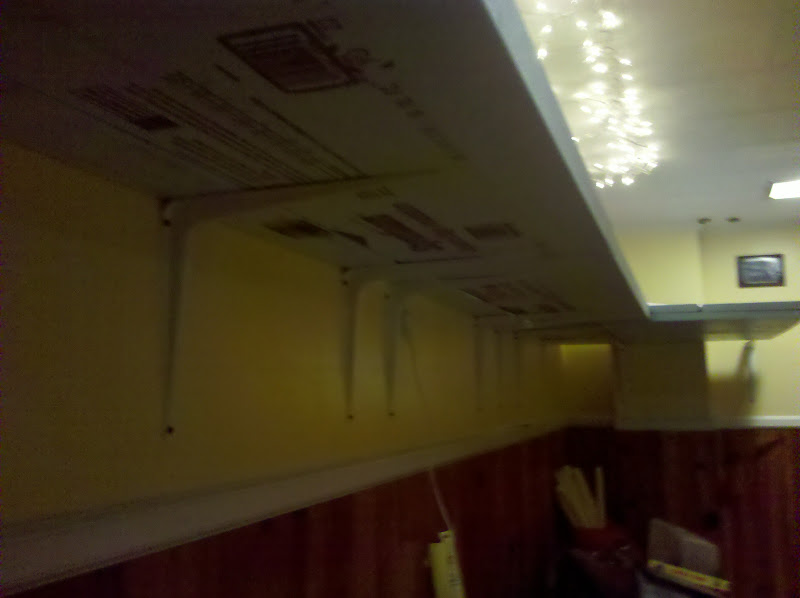

And a shot of underneath, showing how the brackets are supporting the foam.

Zox

  • Crew
  • *
  • Posts: 1120
  • Gender: Male
  • Respect: +2
    • Lord Zox's Home Page
Re: Progress on The Shelf
« Reply #39 on: October 26, 2010, 10:29:38 PM »
0


"The stars at night, are big and bright,
Deep in the heart of Ed's basement!"

:)
Rob M., a.k.a. Zox
z o x @ v e r i z o n . n e t
http://lordzox.com/
It is said a Shaolin chef can wok through walls...

tom mann

  • Administrator
  • Crew
  • *****
  • Posts: 10658
  • Representing The Railwire on The Railwire
  • Respect: +705
    • http://www.chicagoswitching.com
Re: Progress on The Shelf
« Reply #40 on: October 26, 2010, 10:49:58 PM »
0
Ed, some of these photos look surreal...maybe due to the trains on cork, christmas lights strung randomly, trees kinda thrown about, magic marker on pink foam... ;D  You ok? ;D

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 17861
  • Has a degree in American History & Culture.
  • Respect: +2123
    • Conrail 1285
Re: Progress on The Shelf
« Reply #41 on: October 26, 2010, 10:53:10 PM »
0
Lol, yep, I'm good. You're just getting a look into the "process".

Remember this?


lock4244

  • Crew
  • *
  • Posts: 3403
  • Ontario - tax, tax, tax, tax, tax, tax, tax, tax
  • Respect: +59
    • My train pics
Re: Progress on The Shelf
« Reply #42 on: October 26, 2010, 11:11:02 PM »
0
Welcome to Ontario... we've got a tax for that.
My train pics:
http://tinyurl.com/62uk24
More here:
http://www.railpictures.ca/author/lock4244

Sokramiketes

  • Crew
  • *
  • Posts: 3897
  • Proactive advocate of truthiness
  • Respect: +138
    • Modutrak
Re: Progress on The Shelf
« Reply #43 on: October 26, 2010, 11:52:15 PM »
0
This thread is a joke, right?
Mike

www.modutrak.com
Better modeling through peer pressure...

squirrelhunter

  • Crew
  • *
  • Posts: 381
  • Respect: +34
Re: Progress on The Shelf
« Reply #44 on: October 27, 2010, 12:05:00 AM »
0
If the objective is to get trains running ASAP, I can see skipping lots of woodwork and just using foam. If the sections are short with a good number of supports, they will stand up to a lot. The thick foam in short lengths is pretty tough to bend or break. Honestly, the only times I have seen insulation foam in any application warp is if it was a long, thin section or if it had too much weight placed on it over a long period.

Everyone has limited time. Time spent building benchwork is time not spent running trains or building scenery or upgrading equipment. Some folks like building benchwork, or woodworking is their other hobby. That's fine. But I think some here are underestimating the durability of foam that is well supported, even if it isn't by a wooden fort.

I have to disagree with Lee about whether this is a real railroad- I think any layout that seeks to accurately capture some portion of real railroad operations acts like a real railroad. I think that unless you have a huge space or a very small prototype, the idea of modeling every step from interchange, through mainline haulage, to classification and final delivery requires lots of selective compression. Some prototypes lend themselves to this more than others.
