Interactive Scenery Clinic Week 3: The Right of Way
« on: May 09, 2008, 10:59:01 AM »
0
Continuing the series of Interactive Clinics, I am moving on to number 3.  Rather than waiting for a calendar week, I am progressing once I see interest waning in the previous Clinic.  I can only speak for myself, but I have found these to be extremely informative as I have discovered new ways of accomplishing old tasks.  Again, my thanks to all of you who have been posting and sharing.

Topic #3 is the Right of Way.  This includes Ballasting, Culverts, Right of Way Details, and I am including Rock Casting and Carving since in most cases these are visible right along trackside.  Of particular interest in Ballasting would be techniques for securing the ballast, weathering the ballast, and any thoughts on regional differences in ballast size and colour.  Culverts and Right of Way Details is a superdetailing question and again lets us see the materials and techniques that others have used.  Everything from relay boxes, to switch stands, to lineside telephone poles.  When it comes to Rock Casting and Rock Carving the important issues are materials, techniques and colouring.  For castings in the past I have always used Hyrdrocal.  Once the casting has cured you could drive a Mack truck over it and it would be undamaged.  You don't have much working time however.  When it comes to carving this product is not useful unless you are an extremely fast worker.  There is also the question of using real rocks, who has done that, and can you share the results.
« Last Edit: October 11, 2015, 04:53:24 PM by tom mann »

DKS

  • The Pitt
  • Crew
  • *
  • Posts: 13263
  • Respect: +6357
Re: Interactive Scenery Clinic Week 3: The Right of Way
« Reply #1 on: May 09, 2008, 11:29:16 AM »
0

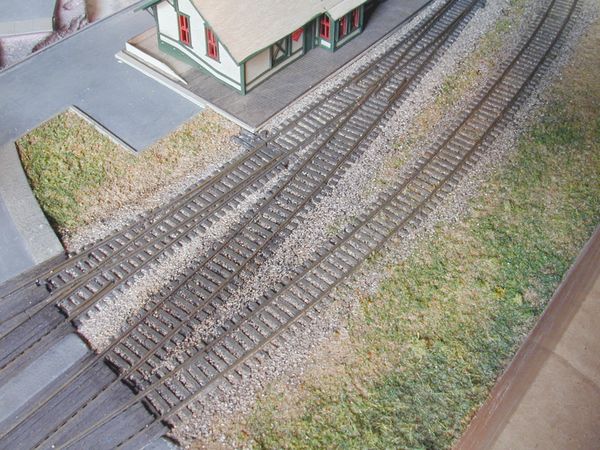

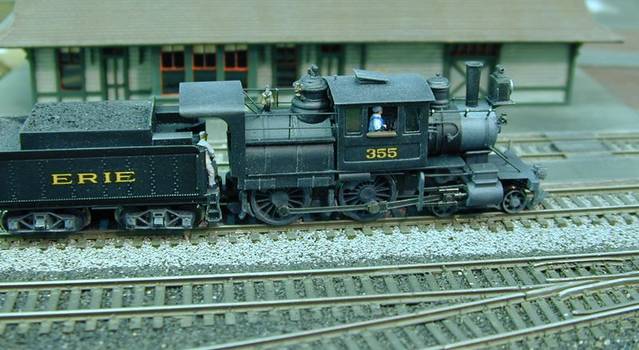

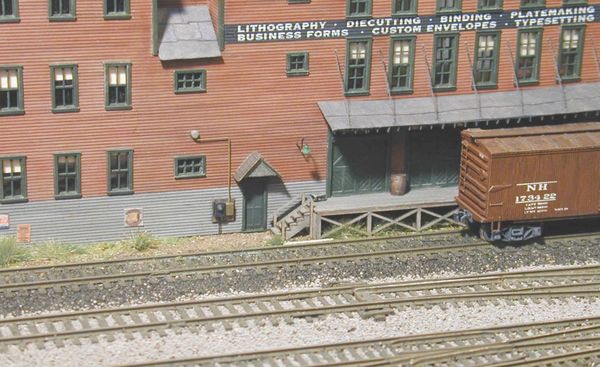

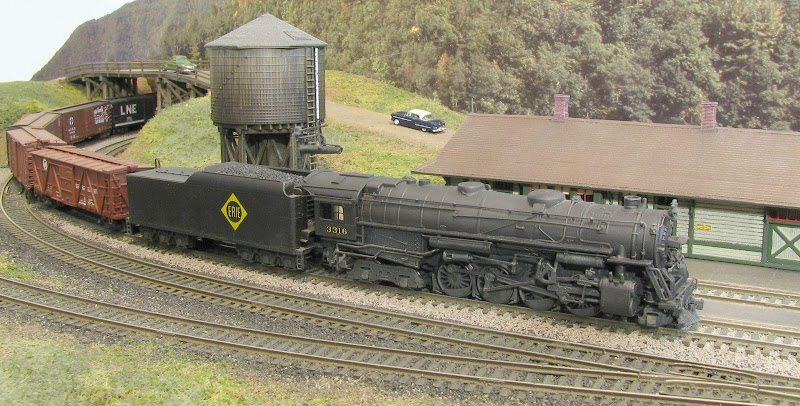

I first paint the track by spraying it with tie brown, then brush on different rust color paints to the rails, and stain random ties with India ink and various thin cream-colored washes to give the ties individual character. Then I use what might be considered the "typical" process of securing the ballast. After applying the ballast and gently "arranging" it with a soft brush (this takes time and patience), I spray it with a liberal amount of ordinary rubbing alcohol. I will then apply a 50-50 mixture of white glue and water with an eyedropper. After the ballast is set, I weather it with powdered chalks.



This assortment of relay boxes includes two styrene kit parts from Green Max (far left and right) plus Micro Engineering soft metal castings (center two). They are sprayed with silver paint and dipped in Rust All. The walkway is stripwood stained with India ink; the concrete footings are carved from sheet styrene.

« Last Edit: October 11, 2015, 04:54:08 PM by tom mann »

DKS

  • The Pitt
  • Crew
  • *
  • Posts: 13263
  • Respect: +6357
Re: Interactive Scenery Clinic Week 3: The Right of Way
« Reply #2 on: May 09, 2008, 11:51:36 AM »
0
For rockwork, I cast in place with Hydrocal stained with black powdered concrete dye. I will build a foundation from chunks of foamcore to keep the volume of the casting down.

[img width= height=]http://lh3.ggpht.com/dks2855/R2Kjy_wJSCI/AAAAAAAABgc/WkIpskaSrzY/s400/IMG_4185.JPG[/img]

After mixing the Hydrocal, I wait until it is about the thickness of pancake batter and then pour it into a rubber mold that has been washed with slightly soapy water. I will tap the mold to keep bubbles to a minimum. I then let the Hydrocal sit in the mold until it is just beginning to harden, and small wet cracks form in the surface when the mold is flexed. Then I will quickly press the mold in place, and hold it there for about a minute.

[img width= height=]http://lh4.ggpht.com/dks2855/R2KkzPwJShI/AAAAAAAABkc/l04nShSOzWE/s400/IMG_4553.JPG[/img]

The mold will start to get warm as the Hydrocal sets, and after a few minutes I peel off the mold. At this point the Hydrocal is soft enough to hand-carve, which I do to blend separate castings together. I use a chisel knife and just jab at the Hydrocal, breaking away irregular chunks.

[img width= height=]http://lh6.ggpht.com/dks2855/R2KkPvwJSRI/AAAAAAAABiY/07XwX7cnmEk/s400/IMG_4529.JPG[/img]

I'll remove the debris with a brush (I often keep the debris to use as talus, since it's an exact color match), and continue carving until the castings are blended. This rock face was made from five separate molds.

[img width= height=]http://lh6.ggpht.com/dks2855/R2Kk1vwJSiI/AAAAAAAABkk/e_tSnDy4cNA/s400/IMG_4555.JPG[/img]

After the Hydrocal is fully cured (I give it a couple of days), I spray it with water and begin applying dyes and stains.

[img width= height=]http://lh5.ggpht.com/dks2855/R2KlWfwJSyI/AAAAAAAABmo/7kUVtU-W8_c/s400/IMG_4606.JPG[/img]

Finally comes ground cover and vegetation.

[img width= height=]http://lh6.ggpht.com/dks2855/R2KlpvwJS6I/AAAAAAAABno/afL-qS8mGiI/s400/IMG_4620.JPG[/img]
« Last Edit: May 09, 2008, 11:57:17 AM by David K. Smith »

chuck geiger

  • Crew
  • *
  • Posts: 2610
  • Gender: Male
  • Starting another layout - Railwire Style JRMFT
  • Respect: +1097
    • ANOTHER GREAT RAILROAD
Re: Interactive Scenery Clinic Week 3: The Right of Way
« Reply #3 on: May 09, 2008, 11:54:57 AM »
0
POSTED LAST YEAR IN MRF

I have learned to weather and ballast track from some great scenery masters. Louie Blachowitz from the Lehigh Valley and Keystone Model Railroad Club in Bethlehem, PA taught me the "rail brown and grimy black" track weathering method. It still works today, hit the side of the exposed and veiwed rail with Rail Brown and Grimy Black from Floquil. Airbrushing can be done after ballasting and should only be used on yard or sidings and shold be a mix of Rail Brown and Rust. Grimy Black is the closest color to the deep purplish-black you see on mainlines.

Let's get started: Rail Brown or Grimy Black can be used or cheap cans of spary primer in gray, black and rust work great.



One of the best kept secret's I have learned with two layouts, is to build up the roadbed with sifted real dirt. This accomplishes two-fold; Keeps the cost of ballast down and it gives the ballast something to grip.





I use Woodland Scenics Fine ballast in Medium Grey and Fine Cinders. Pill bottles work great for tapping and shaking the ballast (lightly between the rails and on both sides). I think people hate ballasting track because they don't get the results they started out to obtain. Keep it light and work the ballast between the rails with a medium brush.



In HO the best product is the 1" throwaway brush from Home Depot. The trick is to make sure the ballast and the dirt roadbed do not cover the tie tops. After tapering and brushing into place, use your finger the clean off the tie-tops.





Next comes the 70% Isopropyl rubbing alcohol in a spray bottle. Hit the area liberally. The alcohol is a wetting agent that penetrates the levels of dirt and ballast.



If it looks a little rough, hit it again with the spray bottle.



Now comes the mixture of 50% water and 50% white glue. Spray it again liberally over the area.



You will need to wait 24 hours for the area to dry. Next we are going to add the grease, oil and tar mix to the roadbed. This was reccomended by Joe Fugate in his scenery articles. This is dry tempra paint from the art supply store.



Dabble the brush inside the container to pick up the paint powder. Dry brush it down the track center and only the left and right tops of the roadbed. I like to wet it with alcohol to disburse it. If you leave it dry, the trucks of cars and pick up from engines will suck it up. This also makes it darker. You can come back with some white dry paint to lighten it.





Above is the finished product and below is the prototype.



Chuck Geiger
Page, AZ
ATSF/BNSF San Jacinto District
provencountrypd@gmail.com
