How would I do these smol NS electrics in N?

[Jim Starbuck]

Width at the sill  18.33mm
Length at the sill  69.74mm
Width of the cab. 16.48mm
Cab front to rear. 18.11
Sill to cab eaves 14.42mm
Bottom of sill to top of cab 20.28mm
Sill thickness 2.84mm
Cab roof front to rear at overhang 20.59mm
Cab roof width at overhang 18.13

[Iain]

[ Guests cannot view attachments ]
Had a go at getting the basic model done.  I'll wait for detailing further until there's a viable drive.


Here's the .stl; let me know if there's any changes you need.

[ Guests cannot view attachments ]

[Jim Starbuck]

Excellent!
I’ll get this on the printer and start working up my drive concept.

[Jim Starbuck]

The shell printed nicely so with a fixed target I started to build the mechanism. The trucks are the geared ends of two Kato 11-105 powered chassis. The bolsters were cut from the donor chassis and inset into .040 styrene which had been fit to the shell. I milled space in the styrene for repurposed pickup strips from the Kato chassis. The brass tabs on the trucks were filed shorter to allow the new chassis to sit all the way down. Hopefully this works well but if not the trucks can be hardwired.
[ Guests cannot view attachments ]
The rotating assembly is a 7x16 dual shaft motor held in printed mounts which were drawn in Fusion 360. The homemade flywheels double as shaft adapters as the motor shaft is 1mm and the worms run on 1.5mm. He worms are m3 3x5mm replacing the stock 4mm Katos and keep the profile as low as possible.
[ Guests cannot view attachments ]
[ Guests cannot view attachments ]
There’s more material to add to the underside and also air tank detail that will mitigate the giraffe riding a bicycle ride height look.
So far so good as it all fits under the hoods.
[ Guests cannot view attachments ]
[ Guests cannot view attachments ]

[Chris333]

Jim, Don't know if it is just the photos, but the worms look like they need to be pushed out more to be centered over the truck gears. The way it looks you might pick the edge of a tooth. But I'm sure you'll get it figured out in the end.

[Jim Starbuck]

Good eye Chris. Thank you.
In the photos the motor assembly is just sitting on the chassis. I still need to file the ears on the mounts to lower the motor and establish gear mesh with the trucks. I admittedly crowded the worms inboard and may have move them out a bit in final setup.

[Iain]

Could you get me a drawing of the flat bit of the frame with critical dimensions?

[Jim Starbuck]

I got back to work on this today with good results. I had to let the method of truck retainment percolate in my head. As I was looking at the stock Kato cages thinking I needed to replicate them somehow it dawned on me to simply modify them by grinding off the part that interfered with the shell and widening the end opening s to allow the truck to pivot without the cage touching the worm. It worked nicely and I did draw the worms about .030” farther outboard on each end.

[ Guests cannot view attachments ]

I glued two rails of 3/32” brass square tube to the underside to stiffen up the styrene chassis. There’s a weight in the cab roof and one between the rails on the underside. I changed out the traction tire wheels with non so it’s all wheel electrical pickup. Even without the traction tires it will push ten MT cars around the test layout. It runs well so I think the shell can now be further developed.

[ Guests cannot view attachments ]

Here’s a short video of it running.

/>

[Dwight in Toronto]

@Jim Starbuck  -  I can’t express how much enjoyment I get from watching your projects progress.  SO inspiring!

[Jim Starbuck]

Thanks Dwight!

@Iain,
The proof of concept is successful so it’s where I can mail it to you if you want to continue developing the shell and sideframes or even reverse engineer the chassis to use pcb.

Jim

[Iain]

Oh, cool.  Apologies for the slow response; the last few weeks have been busy on the steamship and trying to eek out the last of the Seattle summer before it goes cold and dark.

[randgust]

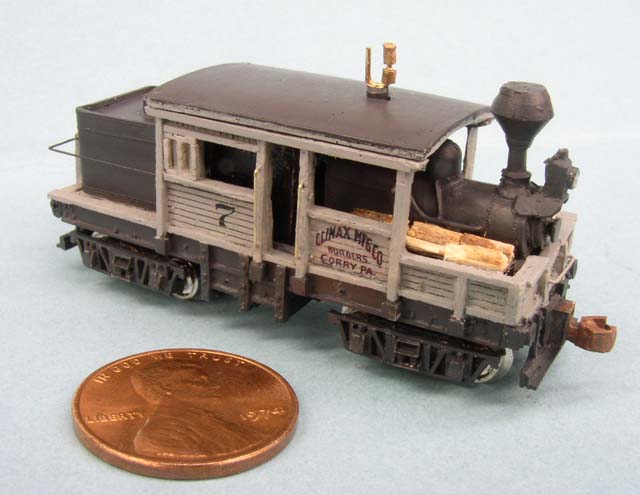

Anybody that's done my Climax A kits has seen the process I use on the truck sideframes.    The Kato trucks for the geared end have the sideframe just snap on/off.

If you take it off, you can file the sides FLAT, all the way down to the point you can see through the bearing cup holes.  About 60%.   That gives you a long, flat surface that can also be cut back with rail cutters a bit on the ends, top, etc.

After that, you can glue on 'new' sideframes as an overlay, whatever you want.   Making sideframes is how I got started in resin casting as the Climax truck was rather distinctive.

I've also sanded them off flat with my drum sander attachement on my overhead radial, that's a lot easier and faster, just watch your fingers.

And, if you're MAKING sideframes, simply adjust the design to the 5'6" wheelbase of the Kato trucks.

But just saying you don't have to live with the VERY Japanese looking trucks if you're using Kato components.   Easy to modify.
