asciibaron

  • Guest
Re: Steve's semi-annual track plan thread
« Reply #45 on: July 10, 2009, 01:03:43 PM »
0
so far we've got 3 people on the crew - two to work and me to watch and drink ;)
Logged

wm3798

  • Crew
  • *
  • Posts: 16551
  • Gender: Male
  • I like models. She likes antiques. Perfect!
  • Respect: +7433
    • Western Maryland Railway Western Lines
Re: Steve's semi-annual track plan thread
« Reply #46 on: July 10, 2009, 02:48:35 PM »
0
I was thinking that the 1x4 frames would carry the main deck, and the lower level staging could be a simple plywood shelf attached to the wall with brackets.

Adjust the grade to the staging by moving the brackets.  That way your main frames are for the most part level...

But I think I see what you're after...

Lee
Logged
Rockin' It Old School

Lee Weldon www.wmrywesternlines.net

asciibaron

  • Guest
Re: Steve's semi-annual track plan thread
« Reply #47 on: July 10, 2009, 03:06:37 PM »
0
Quote from: wm3798 on July 10, 2009, 02:48:35 PM
But I think I see what you're after...

a thin upper level is far better than a thick one given that the grades will be pushing 4% as it is.  i'm not sure how to handle the turnouts - i have a number of Tortoise machines, but that's not possible over the staging area.  i might be able to sort it out since only the passing siding will be remote controlled - all others are hand thrown.
« Last Edit: July 10, 2009, 04:46:14 PM by asciibaron »
Logged

sizemore

  • The Pitt
  • Crew
  • *
  • Posts: 2778
  • Respect: +143
Re: Steve's semi-annual track plan thread
« Reply #48 on: July 10, 2009, 03:30:40 PM »
0
Quote from: asciibaron on July 10, 2009, 03:06:37 PM
Quote from: wm3798 on July 10, 2009, 02:48:35 PM
But I think I see what you're after...

a thin upper level is far better than a think one given that the grades will be pushing 4% as it is.  i'm not sure how to handle the turnouts - i have a number of Tortoise machines, but that's not possible over the staging area.  i might be able to sort it out since only the passing siding will be remote controlled - all others are hand thrown.

You can so cheat those 4% grades. Remember it just needs to clear the upper deck, I think you could pull it off with 2% while the grade still goes downhill underneath the layout. You can get really creative with the highpoint in the lower right corner. Use a side mounted switch control to "apply brakes" for the stuff on parked on the grades.
Logged

Thompson Sub: Instagram | Youtube | Website

wm3798

  • Crew
  • *
  • Posts: 16551
  • Gender: Male
  • I like models. She likes antiques. Perfect!
  • Respect: +7433
    • Western Maryland Railway Western Lines
Re: Steve's semi-annual track plan thread
« Reply #49 on: July 10, 2009, 04:14:40 PM »
0
No, for once Steve is right. ;D  The thin upper deck gives him the profile he needs to let the staging deck dive below.  But switch machines can be problematic.  The simple answer is ground throws.  Everything will be within easy reach, so that's not a big problem, but if you're looking to do some dispatching from a central location, you'll want some sort of power applied to the throws.

Save the tortoises for the staging tracks, that will make it easy to signal them and run them remotely, and you don't have the clearance issue down there.

Lee
Logged
Rockin' It Old School

Lee Weldon www.wmrywesternlines.net

Chris333

  • Crew
  • *
  • Posts: 19540
  • Respect: +6840
Re: Steve's semi-annual track plan thread
« Reply #50 on: July 10, 2009, 04:33:30 PM »
0
How much room between decks?  I guessed you have about 33' run on the upper level, or 396".
5" between tracks would be 1.26% grade
6" = 1.5%
7" = 1.76%
8" = 2%
Give or take. Some of the grade can be on the lower level, but the lower yard will need to be flat.
Logged

wm3798

  • Crew
  • *
  • Posts: 16551
  • Gender: Male
  • I like models. She likes antiques. Perfect!
  • Respect: +7433
    • Western Maryland Railway Western Lines
Re: Steve's semi-annual track plan thread
« Reply #51 on: July 10, 2009, 04:35:05 PM »
0
That's about what I was thinking.  8" would be optimal, allowing about 2" for the thickness of the upper deck and 6" clear for thumbs and elbows.

Lee
Logged
Rockin' It Old School

Lee Weldon www.wmrywesternlines.net

asciibaron

  • Guest
Re: Steve's semi-annual track plan thread
« Reply #52 on: July 10, 2009, 04:51:26 PM »
0
Quote from: wm3798 on July 10, 2009, 04:35:05 PM
That's about what I was thinking.  8" would be optimal, allowing about 2" for the thickness of the upper deck and 6" clear for thumbs and elbows.

i'm looking at a total distance of 8" between the top of the rail in the staging area to the bottom of the upper level.  this allows me to get my head stuck under there and the cat needs somewhere to sleep.  anything less just isn't comfortable for the cat.

the upper deck will be the thickness of 1/2' plywood and homasote - there will only be a tabletop in the center 8 or so feet above the staging.  everything else is cookie cutter.
Logged

wm3798

  • Crew
  • *
  • Posts: 16551
  • Gender: Male
  • I like models. She likes antiques. Perfect!
  • Respect: +7433
    • Western Maryland Railway Western Lines
Re: Steve's semi-annual track plan thread
« Reply #53 on: July 10, 2009, 05:04:49 PM »
0

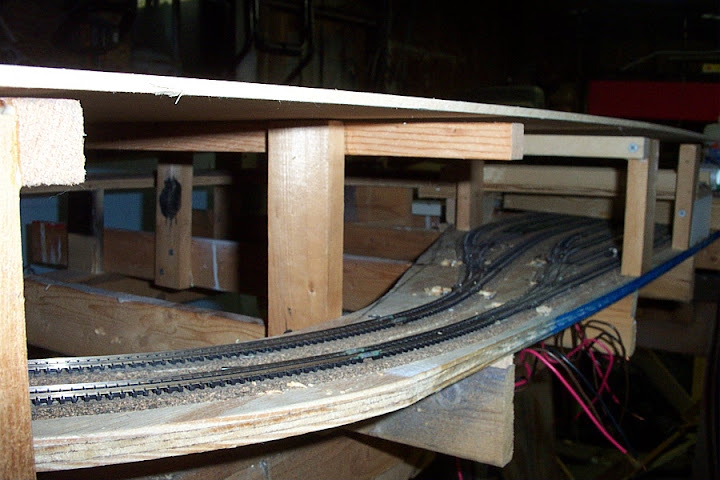

The 1" thick deck will be supported by something, no?


I used 1x1's I cut to support a membrane of 1/4" luaun with 3/4" foam to get my 1" thick subroadbed.

Lee
Logged
Rockin' It Old School

Lee Weldon www.wmrywesternlines.net

asciibaron

  • Guest
Re: Steve's semi-annual track plan thread
« Reply #54 on: July 10, 2009, 05:29:30 PM »
0
it will float - i have a cool Telsa invention.  8)

it's 18" wide - a set of 1x2 vertical supports every 2 feet should be plenty.
« Last Edit: July 10, 2009, 05:37:31 PM by asciibaron »
Logged

asciibaron

  • Guest
Re: Steve's semi-annual track plan thread
« Reply #55 on: July 12, 2009, 08:00:38 PM »
0
ok, what's the date of this disaster.  i figure 3 sheets of 3/4' plywood should be more than plenty and then another sheet of 1/2" plywood and a sheet of homasote - sound about right?  they got homasote at the Home Depot over by you?

-steve
Logged

sizemore

  • The Pitt
  • Crew
  • *
  • Posts: 2778
  • Respect: +143
Re: Steve's semi-annual track plan thread
« Reply #56 on: July 12, 2009, 08:55:35 PM »
0
The last weekend in July and the second weekend in July is out for me. Weekend Bachelor party and training with my reenacting unit.
Logged

Thompson Sub: Instagram | Youtube | Website

sirenwerks

  • Crew
  • *
  • Posts: 6025
  • Gender: Male
  • Respect: +506
Re: Steve's semi-annual track plan thread
« Reply #57 on: July 12, 2009, 09:20:05 PM »
0
Quote from: asciibaron on July 10, 2009, 01:03:43 PM
so far we've got 3 people on the crew - two to work and me to watch and drink ;)

Just like @ the last ops session.

Logged
Failing to prepare is preparing to fail.

asciibaron

  • Guest
Re: Steve's semi-annual track plan thread
« Reply #58 on: July 12, 2009, 11:04:55 PM »
0
Quote from: sirenwerks on July 12, 2009, 09:20:05 PM
Just like @ the last ops session.

Lee's layout was too confusing for me to run ;)
Logged
