PC/Kellogg X79 kit bash

[daniel_leavitt2000]

I'm bringing this up from the coil car thread in Product Discussion. After having some success producing an FGE 5145/5237 boxes (still not cast yet, sorry guys), I'm looking on how one would make the PC/Kellogg X79 box. Are there any drawings out there? What parts could be used?

[Dave V]

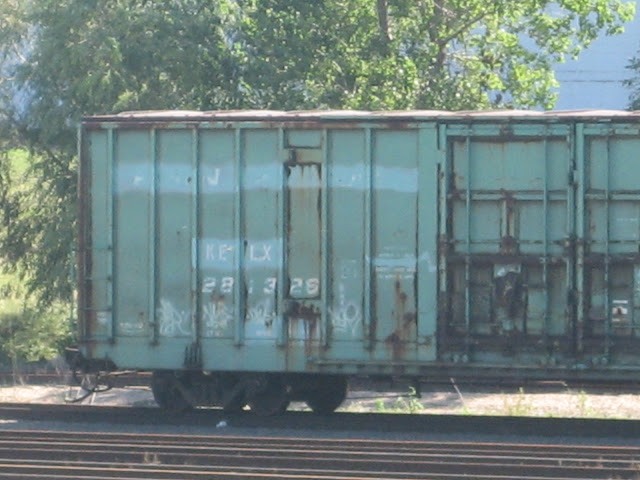

I don't know about drawings, but I have pics I took in Omaha (from 2008):

[daniel_leavitt2000]

Thanks Dave. Are those 4 over 4 improved dreadnaught ends?

[Dave V]

Thanks Dave. Are those 4 over 4 improved dreadnaught ends?

No clue.

[chessie system fan]

I saved the drawing from the Rail Yard Models website.  I'll see if I can find it.

I think the ends might be the same as a MT Greenville car?  The problem will be the roof.  Nothing like it is close in N scale without major compromises.

[daniel_leavitt2000]

It is just a peaked X panel right? What makes it so unique?

[Ike the BN Freak]

This is one of those cars I'd like 1 or 2 of. I remember them from as a kid at Omaha.

[chessie system fan]

I got my MT Greenville car out and that is indeed the correct ends.  The problem with the roof is that it is almost but not quite perfectly flat.  I predict you'll have to splice a roof from 50' sections and then heat it and flatten it.  You might be able to get away with a completely flat roof, if there's one the correct width.  The MT Berwick is too wide.  Maybe this would be a good Shapeways piece?

If you can pull this off it'll be really cool!

[Wlal13again]

Dallas Texas 2003


https://www.flickr.com/photos/12338227@N00/2857755760/in/album-72157627274029276/

[daniel_leavitt2000]

An easy way to flatten a peaked roof is to run a blade along the joint inside. After a few cuts, the roof will flatten and not destroy the detail on the outside.

If I need to go flat, the LL X71 should work if sliced and spliced.

[cjm413]

I saved the drawing from the Rail Yard Models website.  I'll see if I can find it.

I think the ends might be the same as a MT Greenville car?  The problem will be the roof.  Nothing like it is close in N scale without major compromises.

Interesting project - if my kids weren't bouncing off the walls right now, I'd look for an old Con-Cor Greenville car to see if those ends had any potential.

CJM

[dcutting]

Would it help if I were to do parts for this in 3D?

-David

[daniel_leavitt2000]

Dave, it depends on what we have available. The biggest problem would probably be the exterior post sides, but well see.
